Medical Ultrasonic Cleaner
Created with Pixso. 300W Mechanical Ultrasonic Cleaner 14L High Power Ultrasonic Cleaner Mesh Basket Design

300W Mechanical Ultrasonic Cleaner 14L High Power Ultrasonic Cleaner Mesh Basket Design

Brand Name: JeiTai
Model Number: JPS-50
MOQ: 1
Price: ¥1150
Delivery Time: About one week to one month
Payment Terms: T/T
Detail Information
Place of Origin:
Dongguan, Guangdong
Certification:
CE, FCC, ROHS, etc.
Name:
Mechanical Ultrasonic Cleaner
Overall Dimensions Of The Machine:
330×270×320mm
Product Series:
Mechanical Series
Capacity:
14L
Ultrasonic Power:
300 W
Large Box Size:
420×360×420(1Table)mm
Model:
JPS-50
Heating Power:
300 W
Cleaning Tank Size:
300×240×200mm
Gross Weight:
9KG
Packaging Details:
Packaging: Carton Machine dimensions: 330×270×320 mm
Supply Ability:
One unit, with a weight of 3.2 kilograms.
Highlight:

300W Mechanical Ultrasonic Cleaner

,

Mechanical Ultrasonic Cleaner 14L

,

14L High Power Ultrasonic Cleaner

Product Description

Mechanical Control Ultrasonic Cleaning Machine With 300W High Power And Mesh Basket Design, Suitable For Glasses, Watches, Jewelry And Gemstones.





From precision components to heavy-duty workpieces

1. Dedicated Solutions for the Electronics and Semiconductor Industry

For micro-nano structured devices below 0.1mm (such as MEMS sensors and PCB pads), an 80kHz high-frequency cleaning mode is adopted, combined with deionized water-based cleaning agents, achieving the following breakthroughs:

  • Nanometer-level particle removal: Capable of removing aluminum oxide particles ≥0.5μm, with a residue rate <0.1 particles/mm² (superior to IPC-A-610E standards);
  • Non-destructive cleaning process: Through power ramping technology (0-100% power climb time ≤15s), it avoids edge cracking of silicon wafers caused by cavitation impact, increasing the yield rate to 99.2%.

2. Full-process Cleaning for Hardware Machining

In the post-processing scenario of CNC machined parts, the equipment supports integrated multi-process cleaning of "degreasing - derusting - polishing":

  • Degreasing process: At a frequency of 40kHz and a power of 1000W, cutting fluid residues are removed within 30 minutes (removal rate >99%);
  • Derusting process: Combined with ultrasonic derusting agents, cleaning at room temperature (25°C) can peel off the Fe3O4 oxide layer, reducing chemical usage by 70% compared to traditional pickling;
  • Polishing assistance: With emery abrasives, high-frequency vibration achieves a surface roughness of Ra0.2μm, replacing 80% of manual polishing workload.

3. Deep Cleaning for Medical and Daily Chemical Industries

  • Medical device pretreatment: Supports a 134°C high-temperature sterilization mode (requires optional heating module), with microbial count <5CFU per piece after cleaning, meeting the WS 310.2-2016 disinfection supply standards;
  • Beauty tool cleaning: For porous materials such as makeup brushes and powder puffs, low-frequency pulsed cleaning (20kHz+300W) removes residual cosmetic oils within 3 minutes, with a bacterial removal rate >99.9%.
Mechanical Series
Model Capacity Ultrasonic power Heating power Cleaning tank size Overall dimensions of the machine Gross Weight Large box size
L W W (LⅹwⅹH)mm (LⅹwⅹH)mm KG (LⅹwⅹH)mm
JPS-08 1.3L 60 100 150×140×65 180×170×140 2.5  526×524×308(4Table)
JPS-10 2L 80 100 150x140x100 180x170x180 3.0  526×524×338(4Table)
JPS-20 3L 120 100 240x135x100 270x170x210 4.0  410×355×345(2Table)
JPS-30 6L 180 300 300x150x150 330x180x270 6.0  555×435×390(2Table)
JPS-40 10L 240 300 300x240x150 330x270x270 8.0  735×435×380(2Table)
JPS-50 14L 300 300 300×240×200 330×270×320 9.0  420×360×420(1Table)
JPS-60 15L 360 300 330×300×150 360×330×270 10.0  450×420×370(1Table)
JPS-70 19L 420 300 330×300×200 360×330×320 11.0  460×420×420(1Table)
JPS-80 22L 480 600 500×300×150 550×330×270 13.0  625×420×370(1Table)
JPS-100 30L 600 600 500×300×200 550×330×320 15.0  625×420×420(1Table)

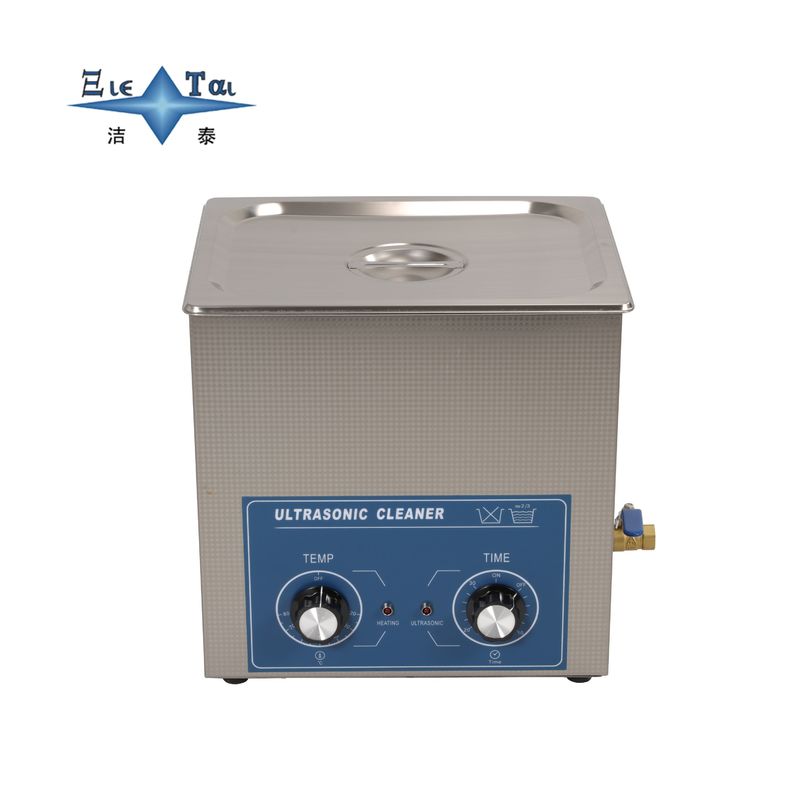

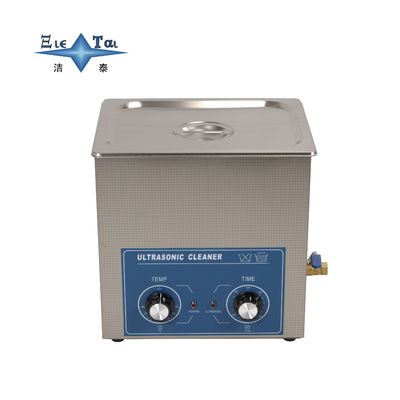

300W Mechanical Ultrasonic Cleaner 14L High Power Ultrasonic Cleaner Mesh Basket Design 0

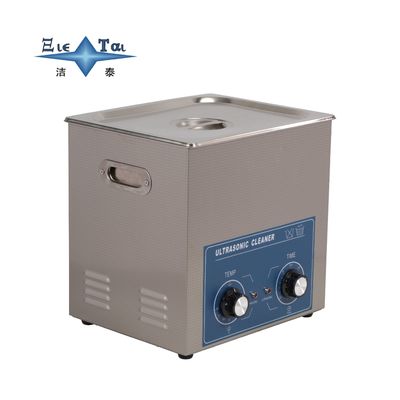

300W Mechanical Ultrasonic Cleaner 14L High Power Ultrasonic Cleaner Mesh Basket Design 1

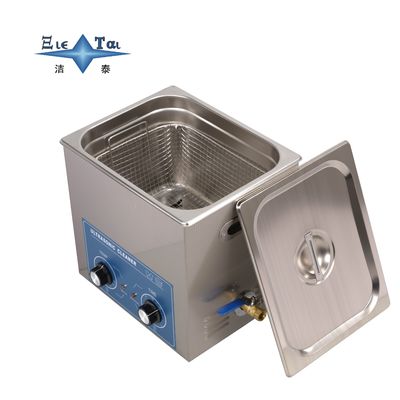

300W Mechanical Ultrasonic Cleaner 14L High Power Ultrasonic Cleaner Mesh Basket Design 2

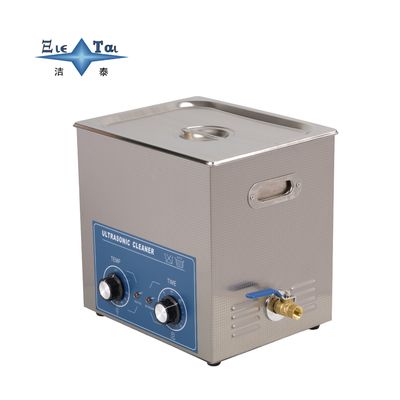

300W Mechanical Ultrasonic Cleaner 14L High Power Ultrasonic Cleaner Mesh Basket Design 3
