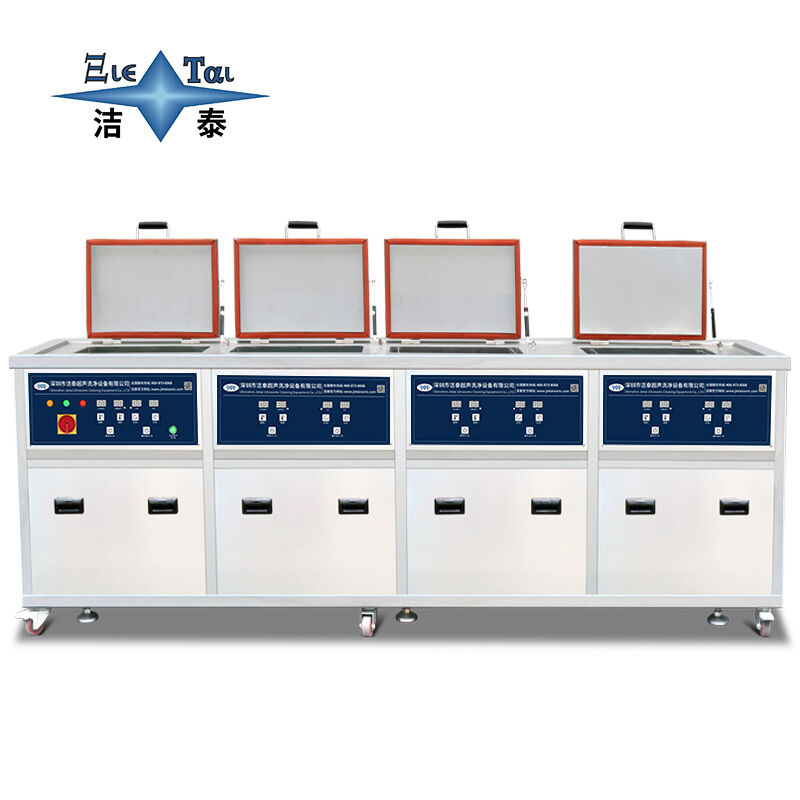

4-Tank Ultrasonic Cleaner: Cleaning Filtration + Rinsing + High-Pressure Spraying + Drying

Name: 4-Tank Ultrasonic Cleaner: Cleaning Filtration + Rinsing + High-Pressure Spraying + Drying
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-4024FRSD
Price: 34500 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-4024FRSD
MOQ:	1
Price:	￥34500
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Model:

JTM-4024FRSD

Overall Dimensions:

500*300*300mm

Cleaning Temperature Control:

Normal - 95℃

Cleaning Frequency:

28KHZ/40KHZ

Tank Capacity:

45L

Time Control:

1-99MIN

Drying Temperature (℃):

Normal - 150℃

Heating Power:

1.5KW

Power:

0-600W*2

Spray Function:

Standard

Filtration Circulation:

Standard

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions:500*300*300mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

4-tank ultrasonic cleaner with filtration

ultrasonic cleaner with high-pressure spraying

custom ultrasonic cleaner with drying

Product Description

4-Tank Ultrasonic Cleaner | Full-process Precision Cleaning Solution for Cleaning & Filtration + Rinsing + High-pressure Spraying + Drying

4-Tank Ultrasonic Cleaner: All-in-One Solution for Cleaning, Filtration, Rinsing, Spraying & Drying

When the cleaning requirements for precision components are upgraded (such as high standards for deep holes, gap stain residues, and surface watermark-free finish), traditional three-tank equipment can no longer meet the demand. Jietai 4-Tank Ultrasonic Cleaner innovatively integrates the core process of high-pressure spraying to build a closed-loop workflow of deep decontamination → purified rinsing → high-pressure stripping → rapid drying. It provides a micron-level cleaning solution for high-demand industrial scenarios, redefining the efficiency and standard of precision cleaning.

Four Core Processes: Each Step Precisely Addresses Cleaning Pain Points

Cleaning & Filtration Tank: Deep Decontamination with Circulating Purification

Adopting 28-130kHz multi-frequency ultrasonic technology (sweep frequency/frequency hopping supported), with adjustable power density ranging from 0.3-1.2W/cm², combined with a 5-20μm precision circulating filtration system, it powerfully removes stubborn contaminants such as oil stains, iron filings, and welding slag from component surfaces. Meanwhile, it filters impurities in the cleaning fluid in real time to avoid secondary pollution caused by contaminant reattachment. Built-in heating function (room temperature to 80℃) accelerates oil stain dissolution, making it suitable for high-pollution load scenarios (e.g., auto parts, hardware workpieces).

Rinsing Tank: Pure Water Compatible for Residue-free Purification

Supporting rinsing with pure water/deionized water, equipped with a constant temperature control system (±2℃ precision temperature control), it quickly removes residual cleaning fluid and trace impurities from component surfaces. Optional dual-rinsing design further improves cleaning precision, ensuring no chemical residues or ionic contamination on component surfaces, which meets the high-standard cleaning requirements of semiconductors, electronic components and other fields.

High-pressure Spraying Tank: Gap Stripping for Enhanced Cleaning

The core upgraded process! Adopting a 0.3-0.8MPa high-pressure spraying system with 360° rotating spray arms, it performs targeted rinsing on areas that are hard to reach by ultrasonic waves, such as deep holes, blind holes and gaps of components, thoroughly stripping hidden stains and residual impurities. Spraying pressure and angle can be adjusted on demand to avoid damaging precision components, while reducing the number of rinsing cycles and improving overall process efficiency.

Drying Tank: Rapid Drying to Prevent Oxidation and Rust

Adopting hot air circulation drying technology, temperature is adjustable from 40-120℃ with graded wind speed control. Combined with sealed cavity and flow guide design, it achieves rapid drying within 3-15 minutes (adjustable according to component size). Compared with traditional drying methods, it improves efficiency by 85%, and can avoid water marks, oxidation and rust on component surfaces, providing an optimal surface for subsequent processes (e.g., electroplating, assembly).

Core Technical Parameters: Quantify Your Cleaning Advantages

Ultrasonic Frequency: 28kHz/40kHz/60kHz/80kHz/130kHz (multi-frequency combination optional)
Cleaning Capacity: 150L-6000L (non-standard customization supported to meet different production capacity requirements)
Filtration Precision: 5μm/10μm/20μm (replaceable filter cartridges, automatic backwashing function supported)
Spraying Pressure: 0.3-0.8MPa (continuously adjustable, supporting switching between fixed-point and full-area spraying)
Drying Temperature: 40-120℃ (±2℃ precision temperature control, hot air circulation wind speed 0.5-2m/s)
Material Configuration: 304/316L stainless steel inner tank + outer shell, corrosion-resistant and easy to clean, complying with food-grade/medical-grade standards
Intelligent Control: PLC touch screen operation, supporting storage of 10+ cleaning programs, timing start/stop, remote monitoring, and linkage with production line automation (MES system integration supported)

4-Tank Ultrasonic Cleaner: Cleaning Filtration + Rinsing + High-Pressure Spraying + Drying 0
