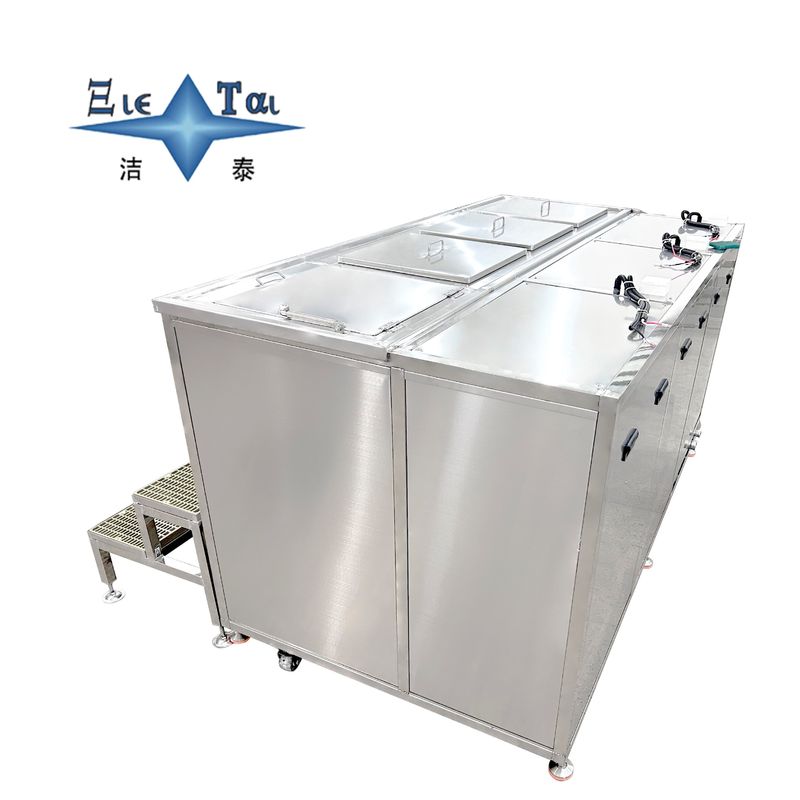

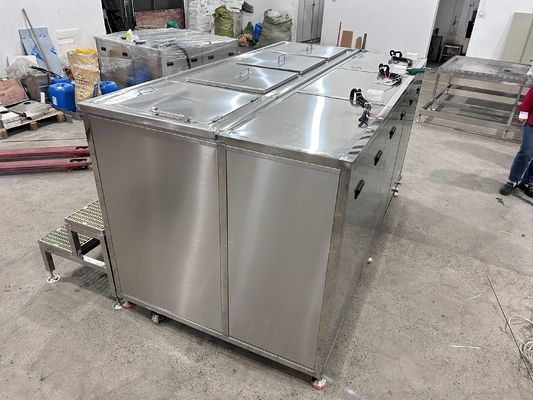

40KW Super Sonic Cleaner Customized Manual Ultrasonic Cleaner

Name: 40KW Super Sonic Cleaner Customized Manual Ultrasonic Cleaner
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-4156GH
Price: 70000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-4156GH
MOQ:	1
Price:	￥70000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Super Sonic Cleaner

Model:

JTM-4156GH

Type:

Ultrasonic Cleaning, Rinsing, Hot Air Drying

Cleaning Frequency:

28KHZ, 40KHZ

Cleaning Temperature:

70℃

Number Of Tanks:

Overall Dimensions:

4M*1.3*1.5M

Power:

40KW

Weight:

1000KG

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions:L4200mm*W1500mm*H1200mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

40KW Super Sonic Cleaner

Super Sonic Cleaner Customized

Customized Manual Ultrasonic Cleaner

Product Description

Jietai, The Original Manufacturer Of Ultrasonic Cleaning Machines, Supports Customization.

Core Advantages: Original Factory Customization, Beyond Standardization

Full-Dimensional Customization Capability to Meet Diverse Scenario Requirements
Hardware Customization:

Frequency/Power: Supports single-frequency or dual-frequency combinations of 28KHz (powerful rough cleaning), 40KHz (precision fine cleaning), and 80KHz (nanoscale cleaning), with adjustable power from 0 to 100%;
Tank Design: Arbitrary combination of 1 to 30 tanks (single-tank capacity ranging from 5L to 500L), with material options including 304/316L stainless steel (temperature-resistant up to 120℃), PP/PVDF (resistant to strong acids and alkalis, pH 1 - 14);
Functional Modules: Special components can be added, such as a shaking device (±15mm amplitude), rotary centrifugal drying (rotation speed 500 - 3000rpm), vacuum drying, and a circulation filtration system (0.1μm precision).

Software Customization:

The PLC control system supports the storage of over 100 cleaning recipes and is compatible with industry protocols such as SEMI standards for semiconductors and ISO 13485 for medical devices;
Integrated with an IoT module, enabling remote monitoring, fault diagnosis, and data traceability (optional MES system integration).

Advantages of Direct Supply from the Original Factory, with Controllable Quality Throughout the Entire Process
R&D Strength:

A professional team of 15 engineers provides one-stop solutions, covering workpiece stain analysis, cleaning solution formulation recommendations, and tooling fixture design;
Equipped with testing equipment such as laser particle counters, contact angle measuring instruments, and salt spray testing machines to ensure a cleanliness compliance rate of ≥99.2%.

40KW Super Sonic Cleaner Customized Manual Ultrasonic Cleaner 0

40KW Super Sonic Cleaner Customized Manual Ultrasonic Cleaner 1

40KW Super Sonic Cleaner Customized Manual Ultrasonic Cleaner 2

40KW Super Sonic Cleaner Customized Manual Ultrasonic Cleaner 3

40KW Super Sonic Cleaner Customized Manual Ultrasonic Cleaner 4
