PLC Control Custom Ultrasonic Cleaner Manual Supersonic Ultrasonic Cleaner 40KW

Name: PLC Control Custom Ultrasonic Cleaner Manual Supersonic Ultrasonic Cleaner 40KW
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-4151GH
Price: 70000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-4151GH
MOQ:	1
Price:	￥70000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Manual Ultrasonic Cleaning Machine

Cleaning Frequency:

28KHZ, 40KHZ

Model:

JTM-4151GH

Type:

Ultrasonic Cleaning, Rinsing, Hot Air Drying

Overall Dimensions:

4M*1.46*1.5M

Weight:

1002KG

Power:

40KW

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions:L4200mm*W1500mm*H1200mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

PLC Control Custom Ultrasonic Cleaner

Manual Supersonic Ultrasonic Cleaner

Supersonic Ultrasonic Cleaner 40KW

Product Description

Jietai, Manual Ultrasonic Cleaning Machine / Original Manufacturer

Core Advantages: Original Factory Customization, Beyond Standardization

Full-Dimensional Customization Capability to Meet Diverse Scenario Requirements
Hardware Customization:

Frequency/Power: Supports single-frequency or dual-frequency combinations of 28KHz (powerful rough cleaning), 40KHz (precision fine cleaning), and 80KHz (nanoscale cleaning), with adjustable power from 0 to 100%.
Tank Design: Arbitrary combination of 1 to 30 tanks (single-tank capacity ranging from 5L to 500L). Materials can be selected from 304/316L stainless steel (temperature-resistant up to 120℃), PP/PVDF (resistant to strong acids and alkalis, pH 1 - 14).
Functional Modules: Special components can be added, such as a shaking device (±15mm amplitude), rotary centrifugal drying (rotational speed 500 - 3000rpm), vacuum drying, and a circulation filtration system (0.1μm precision).

Software Customization:

The PLC control system supports the storage of over 100 cleaning recipes and is compatible with industry protocols such as SEMI standards for semiconductors and ISO 13485 for medical devices.
Integrated with an IoT module, enabling remote monitoring, fault diagnosis, and data traceability (optional MES system integration).

Advantages of Direct Supply from the Original Factory, with Controllable Quality Throughout the Entire Process
R&D Strength:

A professional team of 15 engineers provides one-stop solutions, including workpiece stain analysis, cleaning solution formulation recommendations, and tooling fixture design.
Equipped with testing equipment such as laser particle counters, contact angle measuring instruments, and salt spray testing machines to ensure a cleanliness compliance rate of ≥99.2%.

Manufacturing Capacity:

A 5,000㎡ intelligent factory with ultrasonic transducer welding accuracy of ±0.05mm and a tank welding leakage rate of ≤0.1ml/min.
Supports small-batch trial production (starting from 1 unit) and large-scale mass production, with an annual production capacity of 2,000 units.

Industry Adaptation Experts, Solving Complex Cleaning Challenges
| Industry | Customization Cases |
|--|--|
| Semiconductor | Designed a 12-tank fully automatic cleaning line for 300mm silicon wafers, integrated with megasonic cleaning and nitrogen drying, with particle residue ≤ 5 per 100cm² (≥0.3μm). |
| Automotive Electronics | Customized a high-pressure (100bar) spray cleaning and vacuum drying integrated machine for IGBT modules of new energy vehicles, meeting the cleaning requirements before IP68 waterproof testing. |
| Optical and Medical | Developed an 80KHz high-frequency cleaning machine for contact lenses, combined with medical-grade PP tanks, achieving a surface impurity removal rate of 99.8%. |
| Hardware and Sanitary Ware | Designed a 28KHz low-frequency through-type cleaning line, capable of penetrating 5mm deep holes to clean workpieces before electroplating, increasing the oil removal efficiency by 40%.

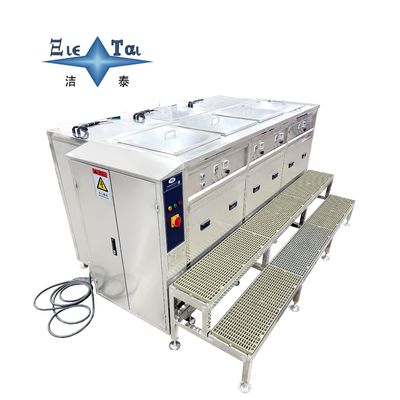

PLC Control Custom Ultrasonic Cleaner Manual Supersonic Ultrasonic Cleaner 40KW 0

PLC Control Custom Ultrasonic Cleaner Manual Supersonic Ultrasonic Cleaner 40KW 1

PLC Control Custom Ultrasonic Cleaner Manual Supersonic Ultrasonic Cleaner 40KW 2

PLC Control Custom Ultrasonic Cleaner Manual Supersonic Ultrasonic Cleaner 40KW 3

PLC Control Custom Ultrasonic Cleaner Manual Supersonic Ultrasonic Cleaner 40KW 4
