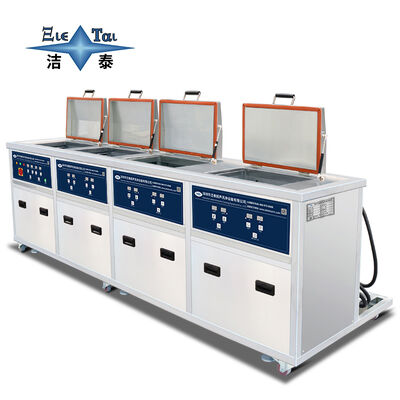

4-Tank Ultrasonic Cleaner: Cleaning Filtration + Double Rinsing + Drying High Purity

Name: 4-Tank Ultrasonic Cleaner: Cleaning Filtration + Double Rinsing + Drying High Purity
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-4036FRD
Price: 33750 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-4036FRD
MOQ:	1
Price:	￥33750
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Power:

0-600W*3

Tank Capacity:

45L

Time Control:

1-99MIN

Heating Power:

1.5KW

Model:

JTM-4036FRD

Filtration Circulation:

Standard

Overall Dimensions:

500*300*300mm

Cleaning Temperature Control:

Normal - 95℃

Cleaning Frequency:

28KHZ/40KHZ

Drying Temperature (℃):

Normal - 150℃

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions:500*300*300mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

4-tank ultrasonic cleaner with drying

ultrasonic cleaner with filtration rinsing

high purity ultrasonic cleaning system

Product Description

4-Tank Ultrasonic Cleaner | All-in-One High-Cleanliness Solution for Cleaning, Filtration, Double Rinsing & Drying

4-Tank Ultrasonic Cleaner: All-in-One Solution for Cleaning, Filtration, Double Rinsing & Drying

When precision components require surface cleanliness standards of "zero residue, no water marks, and non-ionic contamination" (e.g., semiconductor, medical, and optical industries), a single rinsing step can no longer meet the demand. Jietai 4-Tank Ultrasonic Cleaner innovatively adopts the core design of "double rinsing" to build a closed-loop workflow of deep decontamination → primary rinsing → precision cleaning & purification → rapid drying. It controls the surface residue of components at the ppm level, delivering a stable and precise cleanliness solution for high-demand industrial scenarios.

Four Core Processes: Every Step Empowers "Ultimate Cleanliness"

Cleaning & Filtration Tank: Deep Decontamination with Circulating Purification

Equipped with a 28-130kHz multi-frequency adjustable ultrasonic system and precisely controlled power density ranging from 0.3-1.2W/cm², it powerfully removes stubborn contaminants such as oil stains, iron filings, welding slag, and particles from component surfaces. Built-in 5-20μm precision circulating filtration system filters impurities in the cleaning fluid in real time to prevent secondary pollution caused by contaminant reattachment. The integrated heating function (room temperature to 80℃) accelerates the dissolution of oil stains and impurities, making it ideal for high-pollution load scenarios (e.g., auto parts, hardware workpieces, and pre-plating treatment).

First Rinsing Tank: Primary Purification to Remove Most Residues

Preliminary rinsing is performed with clean water or dedicated rinsing fluid to quickly strip the cleaning fluid and a large amount of soluble impurities attached to component surfaces. It features an overflow design to continuously renew the rinsing water, avoiding impurity accumulation and laying the foundation for subsequent precision cleaning. Constant temperature control (room temperature to 60℃) is supported to improve rinsing efficiency, suitable for medium-precision cleaning requirements.

Second Rinsing Tank: Precision Cleaning & Purification for Residue-Free Guarantee

The core upgraded process! Secondary precision cleaning is conducted with pure water/deionized water (compatible with 18MΩ ultrapure water) to completely remove trace residual cleaning fluid, ionic impurities, and micro-particles on component surfaces. Equipped with a ±2℃ precision constant temperature control system and circulating filtration device, it ensures the cleanliness of rinsing water, meeting the stringent requirements of "zero ionic contamination and no water marks" in semiconductor, medical, optical, and other industries. Optional ultrasonic-assisted rinsing is available to further enhance the removal of residues in tiny gaps.

Drying Tank: Rapid Drying to Prevent Oxidation and Rust

Adopting hot air circulation drying technology, it features stepless temperature adjustment from 40-120℃ and precise airspeed control of 0.5-2m/s. The sealed cavity combined with flow guide design achieves rapid drying within 3-15 minutes (adjustable based on component size). Compared with traditional drying methods, it improves efficiency by 80%, while preventing water marks, oxidation, and rust on component surfaces, providing an optimal foundation for subsequent processes such as electroplating, assembly, and packaging.

4-Tank Ultrasonic Cleaner: Cleaning Filtration + Double Rinsing + Drying High Purity 0
