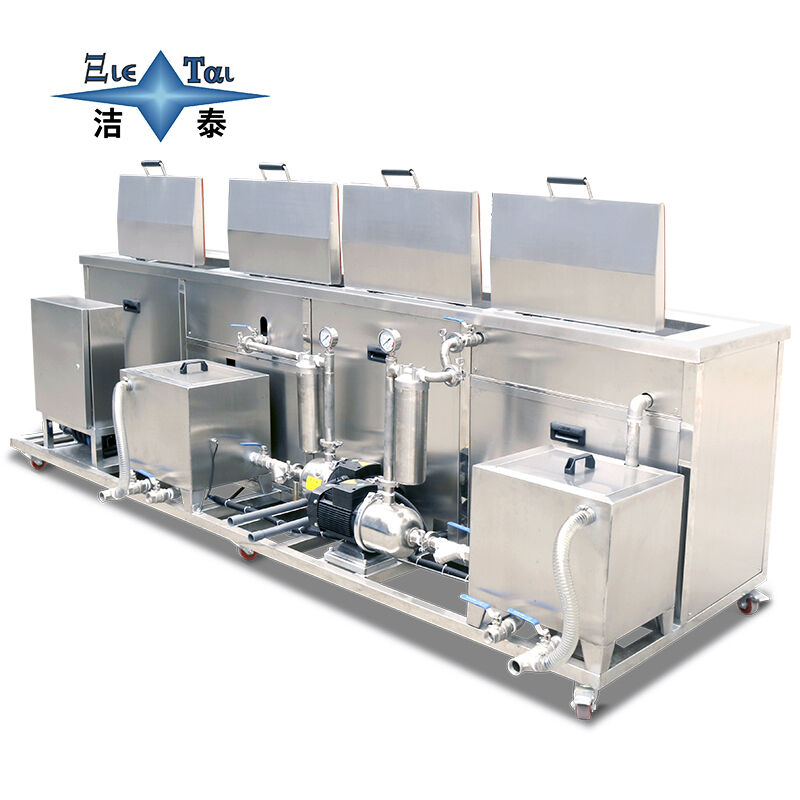

Industrial 4-Slot Cleaning Equipment with Filtration, Rinsing, Spraying & Drying Function

Name: Industrial 4-Slot Cleaning Equipment with Filtration, Rinsing, Spraying & Drying Function
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-4024FRSD
Price: 34500 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-4024FRSD
MOQ:	1
Price:	￥34500
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Power:

0-600W*2

Tank Capacity:

45L

Time Control:

1-99MIN

Spray Function:

Standard

Cleaning Frequency:

28KHZ/40KHZ

Overall Dimensions:

500*300*300mm

Filtration Circulation:

Standard

Cleaning Temperature Control:

Normal - 95℃

Model:

JTM-4024FRSD

Drying Temperature (℃):

Normal - 150℃

Heating Power:

1.5KW

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions:500*300*300mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

industrial ultrasonic cleaning equipment

4-slot ultrasonic cleaner with filtration

rinsing spraying drying ultrasonic cleaner

Product Description

4-Tank Ultrasonic Cleaner | Full-process Precision Cleaning Solution for Cleaning & Filtration + Rinsing + High-pressure Spraying + Drying

4-Tank Ultrasonic Cleaner: All-in-One Solution for Cleaning, Filtration, Rinsing, High-Pressure Spraying & Drying

Residual stains in the deep holes, blind holes and gaps of precision components have long been an intractable pain point for traditional cleaning equipment. Jietai 4-Tank Ultrasonic Cleaner innovatively integrates the core process of high-pressure spraying to build a four-dimensional closed-loop cleaning workflow of deep decontamination → purified rinsing → targeted stripping → rapid drying. It elevates cleaning precision to the micron level, delivering a stable, high-efficiency integrated solution for high-demand industrial scenarios.

Four Core Processes: Each Step Targets Cleaning Pain Points Directly

Cleaning & Filtration Tank: Deep Decontamination with Circulating Purification

Equipped with a 28-130kHz multi-frequency adjustable ultrasonic system and precisely controlled power density ranging from 0.3-1.2W/cm², it powerfully removes stubborn contaminants such as oil stains, iron filings and welding slag from component surfaces. Built-in 5-20μm precision circulating filtration system filters impurities in the cleaning fluid in real time to prevent secondary pollution caused by contaminant reattachment. The integrated heating function (room temperature to 80℃) accelerates oil dissolution, making it ideal for high-pollution load scenarios such as auto parts and hardware workpieces.

Rinsing Tank: Pure Water Purification for Residue-free Guarantee

Supporting rinsing with pure water/deionized water, it comes with a constant temperature control system with ±2℃ precision to quickly remove residual cleaning fluid and trace chemical impurities from component surfaces. Optional dual-rinsing design further reduces surface ionic residues, meeting the stringent cleaning requirements of semiconductors, electronic components and medical accessories, and ensuring no interference to subsequent processing procedures.

High-pressure Spraying Tank: Targeted Stripping for Gap Cleaning

The core upgraded process! Adopting an adjustable high-pressure spraying system of 0.3-0.8MPa, combined with 360° rotating spray arms and directional nozzles, it performs high-pressure rinsing on areas inaccessible to ultrasonic waves, including deep holes, blind holes and threaded gaps, thoroughly stripping hidden stains. Spraying pressure and angle can be customized on demand to avoid damaging the surface of precision components, while reducing rinsing cycles and improving overall cleaning efficiency.

Drying Tank: Rapid Drying to Prevent Oxidation and Rust

Adopting hot air circulation drying technology, it features stepless temperature adjustment from 40-120℃ and precise airspeed control of 0.5-2m/s. The sealed cavity combined with flow guide design achieves rapid drying within 3-15 minutes (adjustable based on component size). Compared with traditional natural air drying or single hot air drying, it improves efficiency by 85%, while preventing water marks, oxidation and rust on component surfaces, providing an optimal foundation for subsequent processes such as electroplating, assembly and packaging.
