Aerospace Ultrasonic Cleaner
Created with Pixso. 22KW Aerospace Ultrasonic Cleaner 50KHZ Ultrasonic Washer For Titanium Alloys And Composite Materials

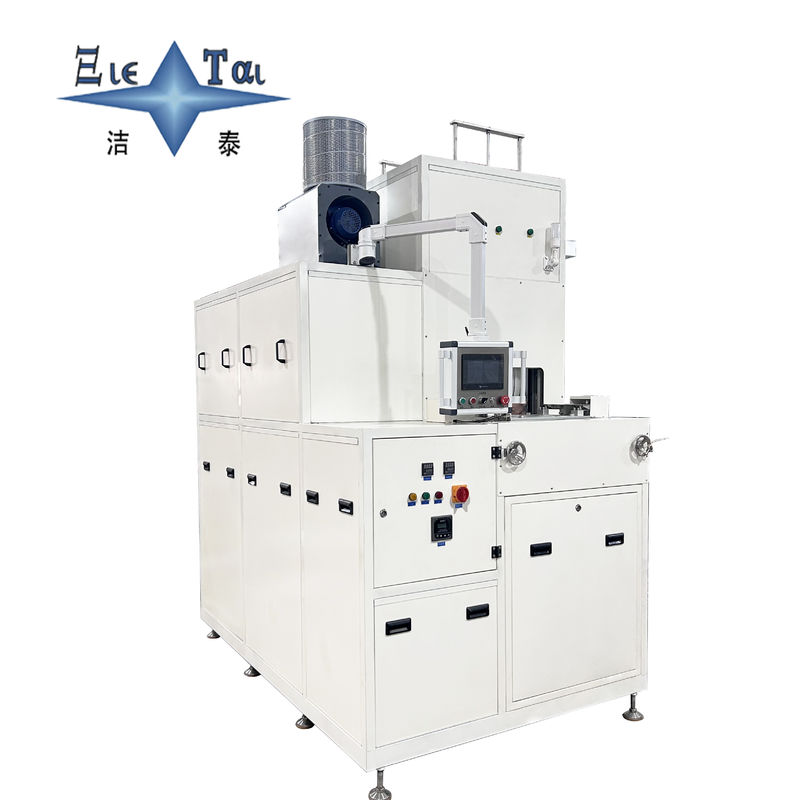

22KW Aerospace Ultrasonic Cleaner 50KHZ Ultrasonic Washer For Titanium Alloys And Composite Materials
  • name
  • name

22KW Aerospace Ultrasonic Cleaner 50KHZ Ultrasonic Washer For Titanium Alloys And Composite Materials

Brand Name: Jietai
Model Number: JTM-200TGS
MOQ: 1
Price: ￥300000
Delivery Time: 30-60work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan, Guangdong
Certification:
CE, FCC, ROHS, etc.
Name:
Mesh Belt Conveyor Spraying + Air Knife Integrated Cleaning Line
Model:
JTM-200TGS
Type:
Through-Type Spraying Cleaning Machine
Cleaning Frequency:
50KHZ
Cleaning Temperature:
70℃
Power:
22KW
Overall Dimensions:
2.8M*1.8M*0.9M
Packaging Details:
Packaging: Wooden case, wooden frame, stretch film. Dimensions:2.8M*1.8M*0.9M
Supply Ability:
One unit. It will take 30 to 60 days.
Highlight:

22KW Aerospace Ultrasonic Cleaner

,

Aerospace Ultrasonic Cleaner 50KHZ

,

50KHZ Ultrasonic Washer

Product Description

Specialized Ultrasonic Cleaning System For Aerospace Structural Components | Non-Destructive Cleaning Solutions For Titanium Alloys And Composite Materials

 24-hour Non-stop Operation, Processing 3,000 Pieces per Hour

  1. Chain Conveyor System: Creating an Uninterrupted Cleaning Production Line

  • Dual-speed Double-chain Transmission: The main track adopts a dual-mode of high-speed conveying at 1.2m/s (unloaded) + low-speed cleaning at 0.5m/s (loaded), compatible with workpieces weighing between 5-50kg (such as automotive engine blocks and new energy battery trays). The actual production capacity reaches 3,000 pieces per hour (taking automotive aluminum wheels as an example), which is 4 times more efficient than traditional single-machine cleaning.
  • Intelligent Anti-collision Carriers: Each carrier is equipped with an elastic buffer mechanism (compression stroke ±10mm), supporting 30° inclined conveying without displacement (offset < 0.2mm). It is suitable for complex structural parts with bosses, such as flanges and gearboxes, to avoid collision damage during transportation.

  1. Five-stage Spraying Process: Cleaning Every Surface without Blind Spots

  • Multi-level Pressure Gradient Design:
    • Pre-washing Stage (8bar): High-pressure fan-shaped nozzles (aperture 1.5mm) wash away large debris on the surface of workpieces (such as foundry sand and cutting iron filings), with a removal rate of ≥95%.
    • Fine-washing Stage (15bar): Rotating spray arms (rotational speed 200rpm) work with 5μm precision-filtered cleaning agents to remove 0.1mm-level oil stains (such as stamping drawing oil and heat treatment residues). The cleanliness rate of the inner walls of blind holes reaches 98.5%.
    • Hot Air Drying Stage: 80℃ constant-temperature air (wind speed 15m/s) is combined with an infrared moisture sensor to monitor the moisture content of grooves in real-time (target ≤0.1%). The drying time is shortened to 2 minutes per piece.
  • Recycling of Cleaning Liquids: The three-stage filtration system (20μm primary filtration + 5μm fine filtration + activated carbon adsorption) extends the replacement cycle of cleaning agents to 48 hours, saving 35% of monthly consumable costs (calculated based on a 10-ton tank).

  1. Modular Quick Changeover: Compatible with Multiple Types of Workpieces

  • Quick-release Spray Racks: Designed with a combination of magnetic attraction and snap fasteners, it can switch the spraying angles of car/truck parts within 5 minutes (such as adjusting the nozzle spacing to fit engine blocks of different sizes), supporting mixed-line production.
  • Parameter Memory Function: 20 sets of process programs are preset (storing 32 parameters such as cleaning time, pressure, and temperature), shortening the new product introduction time by 60%. It is suitable for cleaning various parts, including motor housings of new energy vehicles and gearboxes of traditional fuel vehicles.

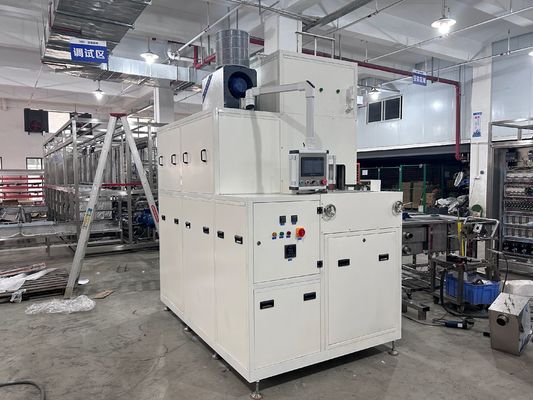

22KW Aerospace Ultrasonic Cleaner 50KHZ Ultrasonic Washer For Titanium Alloys And Composite Materials 022KW Aerospace Ultrasonic Cleaner 50KHZ Ultrasonic Washer For Titanium Alloys And Composite Materials 122KW Aerospace Ultrasonic Cleaner 50KHZ Ultrasonic Washer For Titanium Alloys And Composite Materials 222KW Aerospace Ultrasonic Cleaner 50KHZ Ultrasonic Washer For Titanium Alloys And Composite Materials 3
