Core Functions and Technical Advantages

1. Multi-Modal Cleaning Process for Full-Dimensional Cleanliness Assurance
   28KHz/40KHz Dual-Frequency Ultrasonic Cleaning (Process Stations 2-3):

• The low-frequency 28KHz generates a strong cavitation effect, effectively stripping stubborn impurities such as metal debris and oil stains from gaps in sensor housings and structural components.
• The high-frequency 40KHz precisely handles micron-sized particles (≥5μm) on the surfaces of sensitive components to avoid physical damage.

• A 50bar pressure spray arm provides 360° 死角 - free (dead-angle-free) flushing, combined with adjustable hot pure water at 60–80°C, to quickly remove residual contaminants loosened by ultrasonic waves.
• A magnetic filter (50μm precision) intercepts impurities in real time, preventing secondary contamination of the circulating fluid.

• Constant-temperature hot air circulation at 70–100°C (±2°C precision), paired with air knife blowing technology, achieves watermark-free drying of component surfaces within 3 minutes.
• A built-in humidity sensor automatically stops drying once the standard is met, avoiding excessive energy consumption.

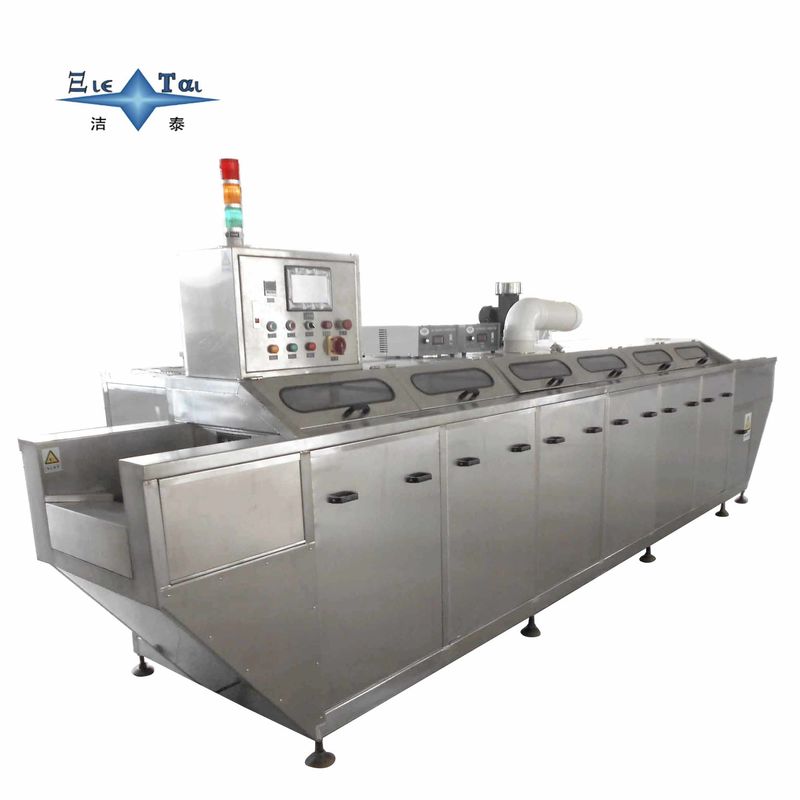

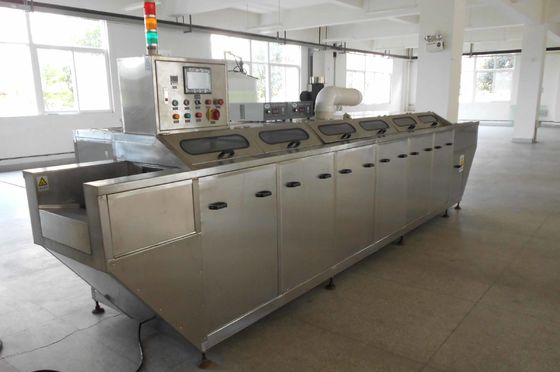

2. Mesh Belt Through-Type Continuous Operation for High-Efficiency Batch Processing
   Stainless Steel Mesh Belt Conveyor System:

• Variable frequency speed control (0.5–3m/min) adapts to workpieces of different sizes (maximum load 5kg/piece) and supports 24-hour continuous operation.
• An anti-jamming photoelectric sensing device monitors workpiece positions in real time to prevent collision damage.

• Includes independent units such as pre-wash tanks, ultrasonic cleaning tanks, spray rinsing tanks, rinse tanks, and hot air drying chambers, supporting individual configuration of process parameters (e.g., cleaning temperature, spray pressure, drying time).

3. Industrial-Grade Durable Design for Harsh Environments
   All-Body 304 Stainless Steel Construction:

• Tank thickness of 5mm, resistant to acid and alkali corrosion (pH 2–12), suitable for various cleaning fluids such as alcohol and emulsifiers.
• A double-layer insulation structure (outer galvanized steel plate + inner aluminum silicate) reduces heat loss by over 30%.
