28KHZ 40KHZ Ultra Sonic Washer Four Tank Ultrasonic Bath Machine Customization Supported

Name: 28KHZ 40KHZ Ultra Sonic Washer Four Tank Ultrasonic Bath Machine Customization Supported
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-4159GH
Price: 70000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-4159GH
MOQ:	1
Price:	￥70000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Manual Ultrasonic Cleaning Machine

Cleaning Frequency:

28KHZ, 40KHZ

Power:

40KW

Weight:

1001KG

Number Of Tanks:

Cleaning Temperature:

60℃

Overall Dimensions:

4M*1.4*1.5M

Type:

Ultrasonic Cleaning, Rinsing, Hot Air Drying

Model:

JTM-4159GH

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions:L4200mm*W1500mm*H1200mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

28KHZ Ultra Sonic Washer

40KHZ Ultra Sonic Washer

Four Tank Ultrasonic Bath Machine

Product Description

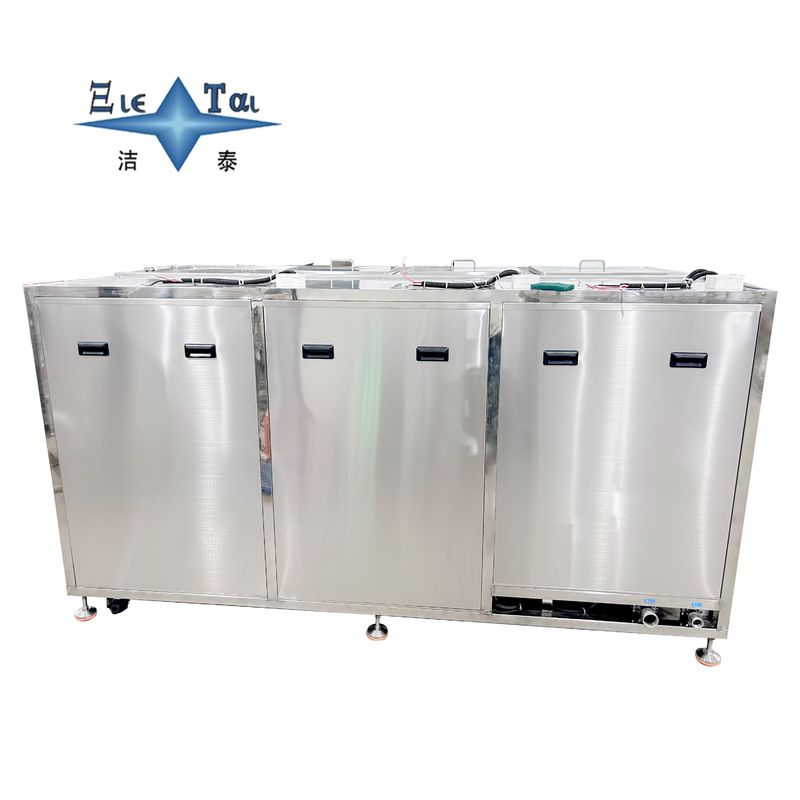

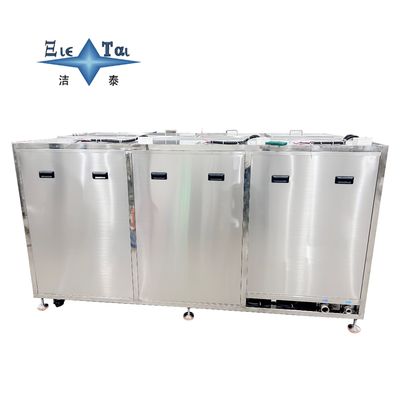

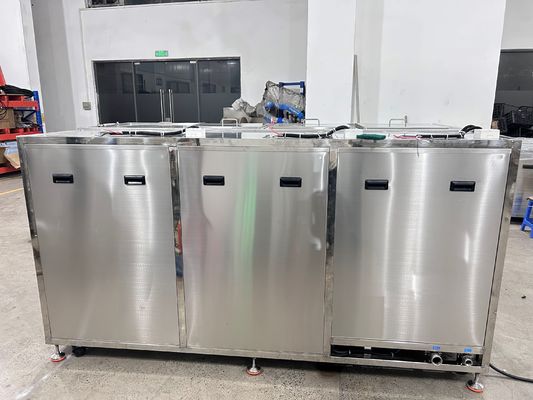

**Jietai** Four-Tank Manual Ultrasonic Cleaning Machine / Customization Supported

Hot Air Circulation Technology: The drying chamber is equipped with a PTC heating module (temperature range: 50 - 120℃, accuracy ±5℃). Combined with an axial fan, it generates a 360° circulating air current, which can completely evaporate the residual 50ml water-based cleaning agent within 6 minutes, leaving no watermarks on the surfaces of lenses or metal parts.

Overheat Protection: The temperature sensor continuously monitors the internal temperature of the chamber. If the temperature exceeds the set value by 15℃, the power will be automatically cut off. The magnetic suction design of the chamber door stops heating immediately when opened, ensuring operational safety.

Low-Noise Operation: The ultrasonic operation noise is less than 65dB, and the drying fan noise is less than 70dB, 10% quieter than similar devices. It is ideal for medical and testing scenarios where environmental noise sensitivity is a concern.

The ultrasonic cleaning machine is meticulously crafted for industrial-grade high-frequency usage scenarios, demonstrating exceptional durability and reliability. The inner tank is made of 316L stainless steel with a wall thickness of 2mm, featuring 极强的 (extremely strong) acid and alkali resistance. It can withstand various acid-base environments with a pH value between 2 and 13, easily coping with both the strong acidic corrosion of 10% sulfuric acid and the strong alkaline erosion of 20% sodium hydroxide. The outer shell of the equipment undergoes a plastic spraying treatment, with a hardness reaching 2H. It not only has excellent scratch resistance, effectively withstanding bumps and friction in daily use, but also has 极佳的 (excellent) insulation performance. The grounding resistance is ≤4Ω, fully complying with the GB/T 19670-2005 electrical safety standard, providing a solid guarantee for safe use in industrial production.

In terms of safety protection, the equipment is equipped with a triple protection mechanism. The overload protection function can quickly cut off the power automatically within <0.2 seconds when the current exceeds 15% of the rated value, avoiding damage to the equipment due to overload operation. The dry-burning prevention function will immediately stop heating when the liquid level is lower than the warning line, preventing safety accidents caused by dry burning. The leakage protection device is equipped with a built-in 30mA leakage circuit breaker, which can quickly cut off the power within 0.1 seconds in case of a grounding fault, comprehensively safeguarding the safety of operators and equipment.

Regarding customization services, Jietai fully considers the diversity of industrial production. Customers can flexibly customize the tank capacity according to their own production needs to adapt to different production batch sizes; precisely adjust the ultrasonic power to match the cleaning requirements of various workpieces; and also optionally equip with a dust-proof air extraction hood to effectively isolate dust and mist generated during the cleaning process and maintain a clean working environment. The optional heating function components further meet the temperature requirements of specific cleaning processes. Through these customization options, the equipment can more perfectly fit the actual usage scenarios, reduce long-term maintenance costs, and significantly improve industrial production efficiency. 28KHZ 40KHZ Ultra Sonic Washer Four Tank Ultrasonic Bath Machine Customization Supported 0

28KHZ 40KHZ Ultra Sonic Washer Four Tank Ultrasonic Bath Machine Customization Supported 1

28KHZ 40KHZ Ultra Sonic Washer Four Tank Ultrasonic Bath Machine Customization Supported 2

28KHZ 40KHZ Ultra Sonic Washer Four Tank Ultrasonic Bath Machine Customization Supported 3

28KHZ 40KHZ Ultra Sonic Washer Four Tank Ultrasonic Bath Machine Customization Supported 4
