Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers

Name: Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-4158GH
Price: 70000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-4158GH
MOQ:	1
Price:	￥70000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Manual Ultrasonic Cleaning Machine

Model:

JTM-4158GH

Type:

Ultrasonic Cleaning, Rinsing, Hot Air Drying

Cleaning Temperature:

70℃

Overall Dimensions:

4.1M×1.3M×1.5M

Power:

40KW

Weight:

1000KG

Cleaning Frequency:

28KHZ, 40KHZ

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions:L4200mm*W1500mm*H1200mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

Manual Custom Ultrasonic Cleaner

Custom Ultrasonic Cleaner 28KHZ

40KHZ Ultrasonic Washers

Product Description

Manual Ultrasonic Cleaning Machine, With Functions Of Ultrasonic Cleaning, Rinsing, And Hot Air Drying.

Industrial-Grade Ultrasonic Cleaning Technology Innovation —— The Perfect Fusion of Precision Cleaning and High-Efficiency Energy Saving

Core Technological Breakthrough: Redefining Industrial Cleaning Standards
As a benchmark device for industrial-grade high-frequency usage scenarios, this ultrasonic cleaning machine is equipped with an adaptive frequency-conversion ultrasonic system that supports wide-frequency adjustment from 20-120kHz. It can precisely match cleaning solutions for workpieces of different materials:

28kHz Low-Frequency Mode: Generates high-intensity cavitation effects to instantly break down oil stains, carbon deposits, and oxide scales on the surfaces of large metal parts such as engine blocks and hydraulic valve bodies.
80kHz High-Frequency Mode: Combined with micro-bubble blasting technology, it penetrates deep into the internal structures of precision components like electronic chip pins and optical lens coating layers, achieving nanometer-level cleanliness.

The equipment uses an all-aluminum structure transducer, integrated with a new OS oscillator and feedback acquisition technology. This ensures a 30% improvement in ultrasonic output stability, a 25% reduction in power consumption, and maintains a power fluctuation accuracy of ±2% after 8 consecutive hours of operation.

Intelligent Temperature Control System: Activating the Chemical Efficiency of Cleaning Liquids

Pipeline Heater: Compared with traditional film-type heating, it improves thermal efficiency by 40%, capable of heating 200L of cleaning liquid from 20°C to 60°C within 15 minutes.
Single-Bus Digital Sensor: Monitors liquid temperature in real time and achieves a temperature control accuracy of ±0.5°C through PID algorithm, precisely activating the chemical reaction activity of acidic/alkaline cleaning agents. This is particularly suitable for highly corrosive environments such as 10% sulfuric acid or 20% sodium hydroxide.
Automatic Liquid Refilling Function: When the liquid level drops below the set value, the system automatically replenishes pre-mixed cleaning liquid to ensure process continuity.

Industrial-Grade Safety and Durability Assurance

316L Stainless Steel Inner Tank: With a 2mm wall thickness design, it can withstand extreme acid-base environments with a pH range of 2-13, showing no corrosion traces after long-term immersion in 10% sulfuric acid.
Triple Safety Protection:
- Overload Protection: Cuts off power within 0.2 seconds when the current exceeds 15% of the rated value.
- Dry-Burning Prevention: Synchronously stops the heating module and ultrasonic generator when the liquid level is below the warning line.
- Leakage Protection: A 30mA circuit breaker responds to grounding faults within 0.1 seconds.
Plastic-Sprayed Shell: The 2H hardness coating effectively resists collisions during workshop transportation, with a grounding resistance ≤4Ω, fully complying with the GB/T 19670-2005 electrical safety standard.

Typical Application Scenarios

Automotive Manufacturing: Cleaning oil stains from gearboxes, combined with a 10% sodium hydroxide solution, can remove 99.9% of cutting fluid residues within 5 minutes.
Electronic Semiconductors: Pre-packaging cleaning of wafer-level chips, achieving non-destructive cleaning at a power density of 0.3W/cm² in the 80kHz high-frequency mode.
Medical Devices: Pre-sterilization pretreatment of surgical instruments, combined with enzymatic cleaning agents, can remove biofilm residues in crevices.

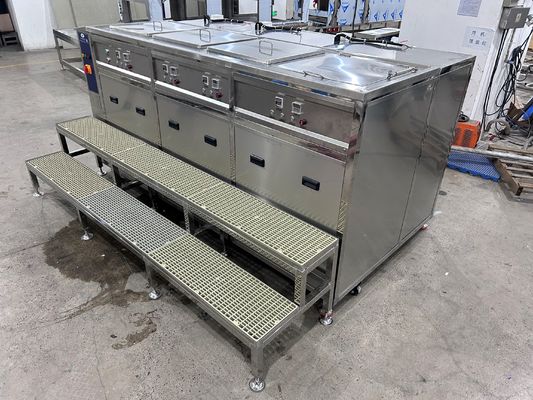

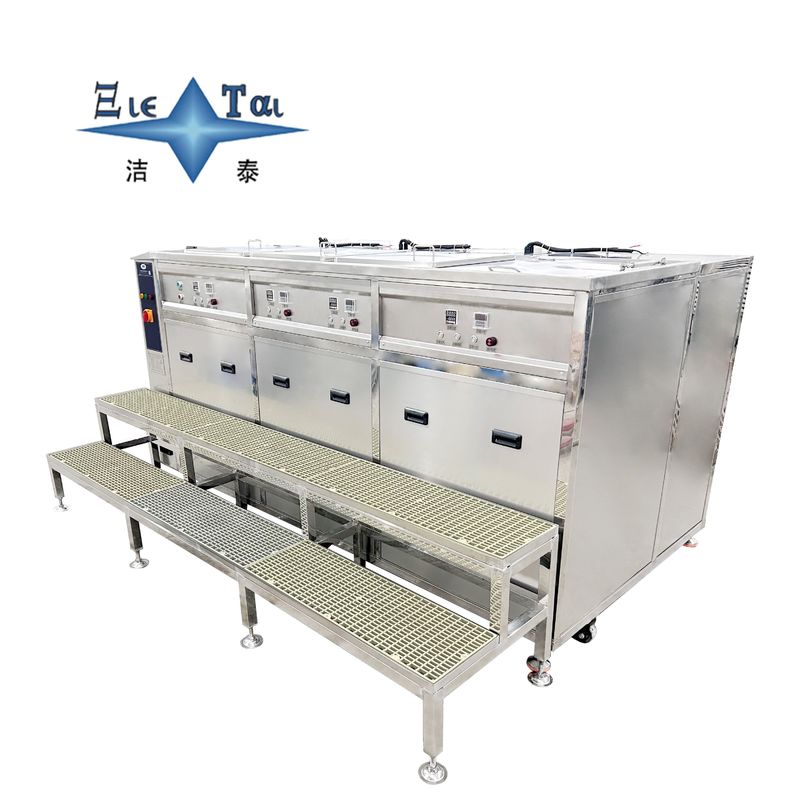

Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers 0

Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers 1

Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers 2

Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers 3

Manual Custom Ultrasonic Cleaner 28KHZ , 40KHZ Ultrasonic Washers 4
