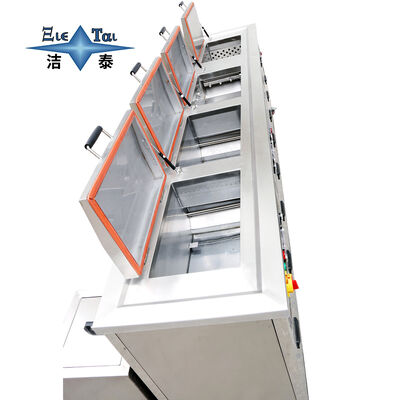

4-Tank Ultrasonic Cleaner: Tailor-Made "Four-Dimensional Cleaning" Closed-Loop Solution for High-Demand Scenarios

4-Stage Precision Cleaning: Tailored Solutions for High-Demand Industries

Customized Solutions for Specific Industries

Electronics/Semiconductor Industry

• Cleaning Tank: 60-100kHz high-frequency ultrasonic waves with low power density (0.1-0.3W/cm²) to avoid damaging precision circuits.
• Rinsing Tank: Rinsing with 18MΩ ultrapure water to remove ionic residues, complying with the cleaning standards of the electronics industry.
• Spraying Tank: Low-pressure directional spraying at 0.3-0.5MPa to rinse off solder slag in the gaps of pins.
• Drying Tank: Low-temperature hot air drying at 40-60℃ to prevent oxidation and discoloration of components, suitable for cleaning semiconductor packages and electronic components.

Medical/Dental Industry

• Cleaning Tank: Made of antibacterial 316L stainless steel with detachable cleaning baskets. 28-40kHz ultrasonic waves combined with 80℃ high-temperature cleaning to powerfully remove organic residues.
• Rinsing Tank: Rinsing with circulating sterile water, equipped with an ultraviolet disinfection module to ensure the cleanliness of the rinsing water.
• Spraying Tank: High-pressure spraying at 0.4-0.6MPa to rinse hidden areas such as instrument joints and alveoli.
• Drying Tank: High-temperature hot air drying and sterilization at 100-120℃, meeting medical sterility requirements, suitable for cleaning surgical instruments, dental handpieces and medical accessories.
