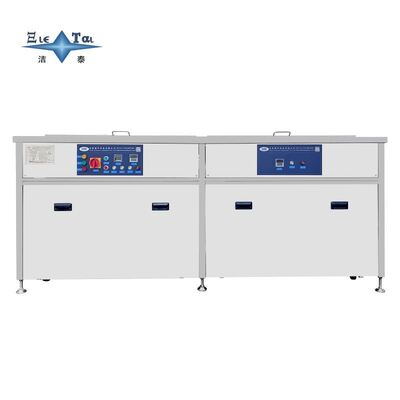

Dual-Tank Ultrasonic Cleaner with Cleaning, Filtration and Drying Functions - Source Factory for Industrial-Grade Precision Parts Degreasing and Dewaxing Equipment

Name: Dual-Tank Ultrasonic Cleaner with Cleaning, Filtration and Drying Functions - Source Factory for Industrial-Grade Precision Parts Degreasing and Dewaxing Equipment
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-2012FD
Price: 18182 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-2012FD
MOQ:	1
Price:	￥18182
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Drying Temperature (℃):

Room Temperature - 150 (℃)

Heating Power:

1.5KW

Time Control:

1-99MIN

Model:

JTM-2012D

Tank Capacity:

45L

Overall Dimensions:

500*300*300mm

Power:

0-600W

Cleaning Frequency:

28KHZ/40KHZ

Cleaning Temperature Control:

Normal - 95℃

Filter Accuracy:

10um

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions:500*300*300mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

dual-tank ultrasonic cleaner with filtration

industrial-grade ultrasonic cleaning equipment

precision parts degreasing ultrasonic cleaner

Product Description

Core Positioning

This integrated double-tank equipment is specifically designed for industrial batch cleaning, integrating the full process of "ultrasonic cleaning + precision filtration + hot air drying". It meets the needs of oil, chip, and impurity removal for components across multiple industries, enabling seamless connection of "cleaning - rinsing - drying". Balancing cleanliness and production efficiency, it is a mainstream choice for small and medium-sized enterprises to reduce costs and improve efficiency.

Core Selling Points

1. Double-Tank Partition Design to Eliminate Cross-Contamination

Independent cleaning tank and rinsing tank operate in separate zones: the first tank achieves powerful ultrasonic decontamination (suitable for oil stains, metal chips, residual additives, etc.), while the second tank performs precision rinsing + filtration circulation to avoid secondary contamination by dirt. Its cleanliness is far higher than that of single-tank equipment, meeting high cleanliness standards in electronics, hardware, and other industries.

2. Filtration Circulation System for Significant Energy Saving and Cost Reduction

Equipped with a built-in 5μm precision filtration device, the cleaning solution recycling rate is increased by 60%, reducing the frequency of cleaning agent replacement and saving over 40% of annual consumable costs. It is paired with a 304 stainless steel corrosion-resistant tank (2mm thickened) manufactured via manual TIG welding, supporting 24/7 continuous operation and leading the industry in durability.

3. Rapid Hot Air Drying with No Water Stain Residue

The integrated drying tank design eliminates the need for additional drying equipment. With an adjustable constant temperature system (40-95℃) and Class 100 clean hot air, it enables rapid drying in 3-8 minutes, preventing oxidation and rusting of components. After drying, the surface has no water stains or residues, allowing direct connection to subsequent processes (such as assembly and coating).

4. Non-Destructive Cleaning Technology for Multi-Material Workpieces

Adopting a 28-130KHz multi-frequency ultrasonic system with stepless power adjustment, it customizes cleaning parameters for different materials such as soft metals (aluminum parts), precision electronic components, and optical accessories. This achieves a balance between "powerful decontamination" and "non-destructive workpiece", with a post-cleaning surface roughness of Ra ≤ 0.5nm.

Applicable Industries & Cleaning Objects

Mechanical Manufacturing: Gears, bearings, molds, fasteners (oil stain and chip removal)

Electronics Industry: PCB boards, connectors, capacitors & resistors (flux and dust removal)

Hardware Processing: Stamped parts, screws, cutting tools (cutting oil and anti-rust oil removal)

Medical Devices: Surgical instruments, dental tools (blood stain and residual reagent removal)

Optics/Jewelry: Lenses, jewelry (fingerprint and micro-particle removal)​

Dual-Tank Ultrasonic Cleaner with Cleaning, Filtration and Drying Functions - Source Factory for Industrial-Grade Precision Parts Degreasing and Dewaxing Equipment 0

Dual-Tank Ultrasonic Cleaner with Cleaning, Filtration and Drying Functions - Source Factory for Industrial-Grade Precision Parts Degreasing and Dewaxing Equipment 1

Dual-Tank Ultrasonic Cleaner with Cleaning, Filtration and Drying Functions - Source Factory for Industrial-Grade Precision Parts Degreasing and Dewaxing Equipment 2

Dual-Tank Ultrasonic Cleaner with Cleaning, Filtration and Drying Functions - Source Factory for Industrial-Grade Precision Parts Degreasing and Dewaxing Equipment 3

Dual-Tank Ultrasonic Cleaner with Cleaning, Filtration and Drying Functions - Source Factory for Industrial-Grade Precision Parts Degreasing and Dewaxing Equipment 4

Dual-Tank Ultrasonic Cleaner with Cleaning, Filtration and Drying Functions - Source Factory for Industrial-Grade Precision Parts Degreasing and Dewaxing Equipment 5
