Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Ultrasonic Cleaning Equipment
Created with Pixso. 40KW Three-Tank Ultrasonic Cleaning Equipment, 40kHz Industrial Ultrasonic Units for Hardware Industry Precision Cleaning & Degreasing
name
  • name
  • name
  • name
  • name
  • name

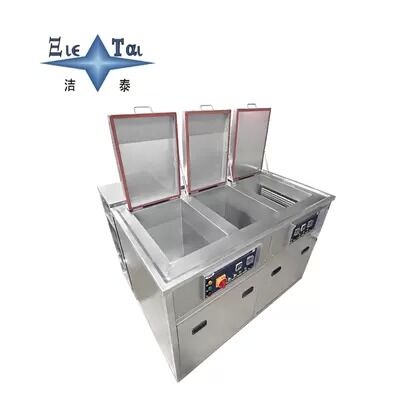

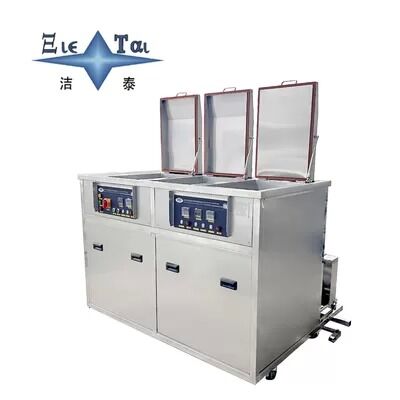

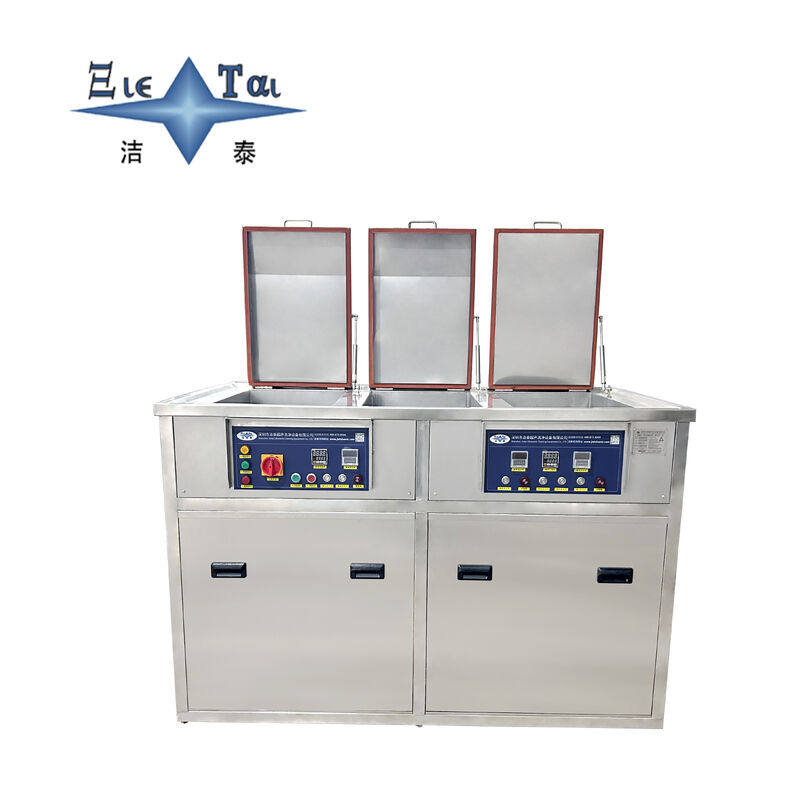

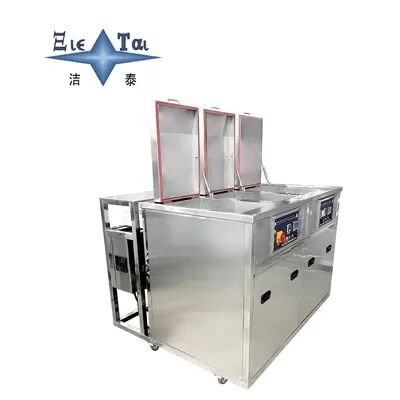

40KW Three-Tank Ultrasonic Cleaning Equipment, 40kHz Industrial Ultrasonic Units for Hardware Industry Precision Cleaning & Degreasing

Brand Name: Jietai
Model Number: JTM-3096FD
MOQ: 1
Price: ￥50000
Delivery Time: 30-60work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan, Guangdong
Certification:
CE, FCC, ROHS, etc.
Cleaning Frequency:
40KHZ
Cleaning Temperature:
Normal Temperature60℃-100℃
Power:
40KW
Weight:
800KG
Model:
JTM-3096FD
Number Of Tanks:
3 Tanks
Type:
Ultrasonic Cleaning And Hot Air Drying
Dimensions:
2.2M*1.5M*1.2M
Packaging Details:
Packaging: Wooden case, wooden frame, stretch film. Dimensions:2.2M*1.5M*1.2M
Supply Ability:
One unit requires 60 days.
Product Description

Three-Tank Ultrasonic Cleaning and Drying Machine | Integrated Heavy Oil Cleaning & Fast Drying Solution for Hardware Industry

Product Positioning

Custom-built for hardware processing workpieces such as bearings, gears, fasteners and molds, this three-tank ultrasonic cleaning equipment integrates three core functions: 40kHz medium-frequency ultrasonic cleaning, multi-stage rinsing, and constant-temperature hot air drying. It efficiently removes cutting fluid residue, heavy grease, and metal particles above 5μm, achieving a 99.6% oil removal rate and zero residual dirt in blind holes deeper than 0.1mm.
Adopting an integrated three-tank structure (cleaning tank, rinsing tank, drying tank), the machine supports medium and small batch production of 10–100kg per batch and can be seamlessly connected to automatic production lines. It meets high-precision cleaning requirements for metal electroplating, spraying and assembly processes. After drying, the workpiece surface tension reaches ≥72mN/m, reducing electroplating leakage rate by 50% and greatly improving the yield of subsequent processing procedures.

1. Professional Customized Support for Hardware Industry

Free Sample Testing Service
Customers can provide workpiece and pollutant samples for professional testing. We deliver official test reports covering oil film residue and particle size analysis within 48 hours. For special-shaped workpieces such as deep-hole valve bodies, we provide free customized POM positioning brackets with a positioning error of less than 1mm, ensuring stable and accurate cleaning placement.
Custom Process Development
We provide targeted pre-treatment cleaning solutions for electroplating and spraying processes, perfectly adapting to special hardware materials including zinc alloy and magnesium alloy. The equipment supports PLC system docking with production lines, realizing automatic linkage with loading and unloading robots for unmanned and intelligent cleaning production.

2. Full-Cycle Operation & Maintenance Guarantee

Intelligent Fault Early Warning System
Equipped with vibration sensors to monitor ultrasonic transducer operating status with 95% early warning accuracy, and pressure sensors to detect nozzle blockage with a response time within 15 seconds. Built-in 4G remote diagnosis module realizes real-time equipment status monitoring, and automatically pushes abnormal alarm information to mobile terminals for timely troubleshooting.
Fast Spare Parts & After-Sales Support
We stock sufficient wearing parts including ultrasonic transducers, heating tubes and filter elements, providing nationwide delivery within 72 hours. Annual in-depth maintenance services are available, including tank passivation treatment and circuit system inspection, to maintain long-term stable and high-efficiency equipment operation.

40KW Three-Tank Ultrasonic Cleaning Equipment, 40kHz Industrial Ultrasonic Units for Hardware Industry Precision Cleaning & Degreasing

40KW Three-Tank Ultrasonic Cleaning Equipment, 40kHz Industrial Ultrasonic Units for Hardware Industry Precision Cleaning & Degreasing

40KW Three-Tank Ultrasonic Cleaning Equipment, 40kHz Industrial Ultrasonic Units for Hardware Industry Precision Cleaning & Degreasing

40KW Three-Tank Ultrasonic Cleaning Equipment, 40kHz Industrial Ultrasonic Units for Hardware Industry Precision Cleaning & Degreasing

40KW Three-Tank Ultrasonic Cleaning Equipment, 40kHz Industrial Ultrasonic Units for Hardware Industry Precision Cleaning & Degreasing

40KW Three-Tank Ultrasonic Cleaning Equipment, 40kHz Industrial Ultrasonic Units for Hardware Industry Precision Cleaning & Degreasing


Tags:

Ultrasonic Cleaning Machine

Degassing Ultrasonic Cleaner

Sweeping Frequency Ultrasonic Cleaner
