Ultrasonic Spray Cleaning Machine 22KW Air Knife Cleaning System Fully Automatic

Name: Ultrasonic Spray Cleaning Machine 22KW Air Knife Cleaning System Fully Automatic
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-209TGS
Price: 300000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-209TGS
MOQ:	1
Price:	￥300000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Spray Cleaning Machine

Number Of Tanks:

Overall Dimensions:

2.8M*1.9M*0.8M

Power:

22KW

Type:

Through-Type Spray Cleaning Machine

Model:

JTM-209TGS

Cleaning Temperature:

70℃

Weight:

806KG

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions: 2800*1800*900mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

Ultrasonic Spray Cleaning Machine

Spray Cleaning Machine 22KW

Air Knife Cleaning System Fully Automatic

Product Description

Jietai Ultrasonic Mesh Belt Conveyor Spray And Air Knife Integrated Cleaning Line, Fully Automatic Continuous Precision Hardware Cleaning Equipment

Coping with Harsh Industrial Environments

Dual Reinforcement of Materials and Structure
Configuration of Core Components:

Spray Pump: German WILO stainless steel centrifugal pump (flow-through components made of 316L material), resistant to chloride ion corrosion (Cl⁻ ≤ 2000ppm), with a service life of over 15,000 hours.
Tank Body: 5mm-thick 316L stainless steel (lined with PTFE coating, heat-resistant up to 120°C). Welds undergo X-ray flaw detection (defect grade ≤ Class II), suitable for strong corrosive cleaning agents such as sodium hydroxide (NaOH ≤ 30%) and hydrochloric acid (HCl ≤ 20%).
Conveyor Chain: Italian REGINA chain (surface galvanized, salt spray test ≥ 1000 hours), equipped with an automatic oiling system (lubrication interval adjustable from 1–24 hours), reducing maintenance frequency by 60%.

Safe and Environmentally Friendly Design Complying with Multiple Standards
Triple Anti-Leakage System:

Double-layer containment dikes around the tank (height 150mm) + bottom conductivity sensor. When leakage is detected, the power supply of the liquid supply pump is cut off within 3 seconds.
Exhaust Gas Treatment Module: Acid-base mist is treated via a neutralization tower (filled with polypropylene Pall rings) + activated carbon adsorption (adsorption efficiency ≥ 98%), with emissions complying with GB 16297-1996 Comprehensive Emission Standards for Air Pollutants.
Noise Control: The equipment is equipped with 5mm soundproof cotton + muffling nozzles, with operating noise ≤ 75dB (1m away from the equipment), meeting OSHA occupational safety and health standards.

Low-Consumption Energy-Saving Technology Reducing Production Costs

Waste Heat Recovery System: Exhaust gas from the drying section (temperature 60–80°C) preheats the cleaning solution via a plate heat exchanger, improving thermal efficiency by 40%. It saves 200kWh of electricity per shift (8 hours) (equivalent to a 150kg reduction in CO₂ emissions).
Variable Frequency Speed Regulation Technology: Spray pumps and fans use ABB frequency converters (speed regulation accuracy ±0.5%), automatically adjusting power according to load, achieving energy savings of over 30% during non-full-load operation.

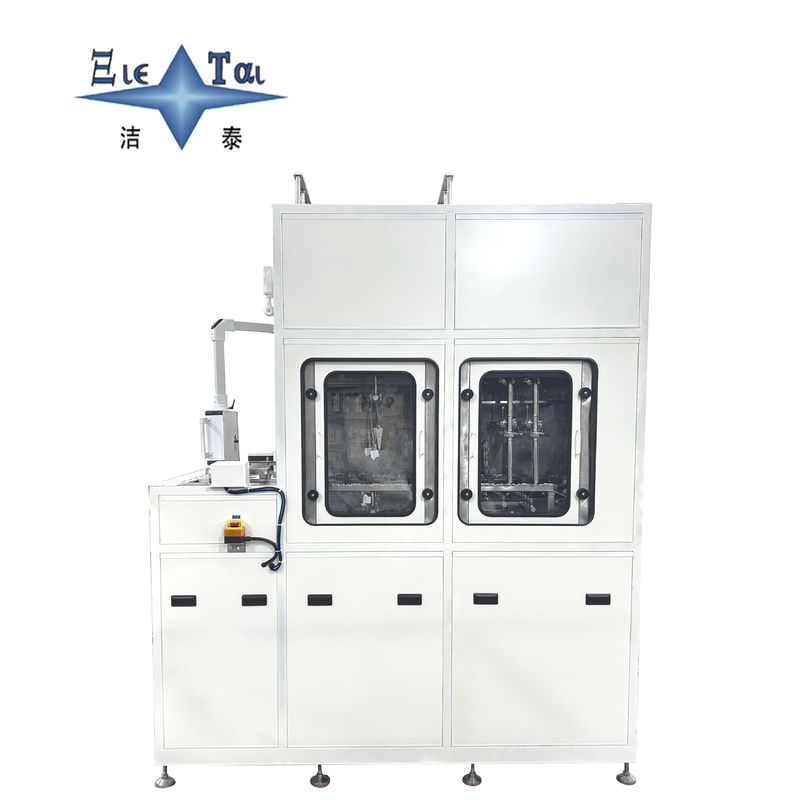

Ultrasonic Spray Cleaning Machine 22KW Air Knife Cleaning System Fully Automatic 0

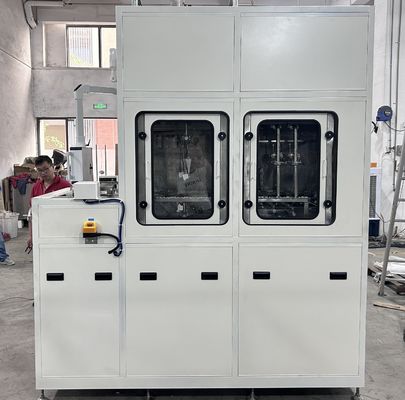

Ultrasonic Spray Cleaning Machine 22KW Air Knife Cleaning System Fully Automatic 1

Ultrasonic Spray Cleaning Machine 22KW Air Knife Cleaning System Fully Automatic 2

Ultrasonic Spray Cleaning Machine 22KW Air Knife Cleaning System Fully Automatic 3

Ultrasonic Spray Cleaning Machine 22KW Air Knife Cleaning System Fully Automatic 4
