40KHz / 80KHz Ultrasound Washing Machine Valve Body Electrolytic Cleaning Line

Name: 40KHz / 80KHz Ultrasound Washing Machine Valve Body Electrolytic Cleaning Line
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-30960FD
Price: 1300000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-30960FD
MOQ:	1
Price:	￥1300000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Cleaning Temperature:

Ambient Temperature - 100℃

Model:

JTM-30960FD

Type:

Manual Line

Cleaning Frequency:

40KHZ/80KHZ

Number Of Tanks:

Overall Dimensions:

19M×1.5M×2.2M

Power:

250KW

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film. Dimensions: 19M*1.5M*2.2M

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

40KHz Ultrasound Washing Machine

80KHz Ultrasound Washing Machine

Valve Body Electrolytic Cleaning Line

Product Description

Ultrasonic Cleaning Machine, 40KHz/80KHz Optional, Semiconductor (Valve Body EP Electrolytic Cleaning Line)

Industrial-grade corrosion resistance and durability, designed to withstand harsh chemical environments

Dual protection of materials and structure
Configuration of core components:

Power module: Imported Japanese IGBT power devices, with anti-harmonic interference capabilities meeting industrial Grade 3 standards and a service life of over 15,000 hours.
Tank materials: The EP tank is made of 316L stainless steel lined with Teflon (temperature resistance up to 120°C). The electrolytic tank and passivation tank adopt a fully welded PP structure (weld strength ≥30MPa), resistant to acids and alkalis within a pH range of 1-14.
Pipeline system: High-pressure resistant hoses made of PVDF material (burst pressure ≥10bar) with quick-connect fitting design, enabling rapid flow cutoff and pipe replacement during maintenance.

Safe and environmentally friendly design
Triple anti-leakage system:

Double-layer containment dikes around the tanks (height 100mm) + bottom conductivity sensors. When leakage is detected, the power supply of the liquid supply pump is cut off within 3 seconds.
Acid and alkali storage cabinets are equipped with activated carbon adsorption devices (adsorption efficiency ≥95%) and externally connected duct fans (air volume 500m³/h), ensuring that the concentration of harmful gases in the operation area is below the Occupational Exposure Limit (OEL).
The equipment's grounding resistance ≤4Ω, and a surge protector (rated current capacity 40kA) is installed at the power input, complying with the GB/T 17626.5 electromagnetic compatibility standard.

Low-consumption and energy-saving design

Intelligent temperature control technology: The heating tubes are made of 316L stainless steel sheathed type (surface load ≤2W/cm²), adjusted automatically by a PID algorithm, saving 30% more electricity compared to traditional resistance heating.
Water resource recycling: Wastewater from the cleaning tank is treated by ion-exchange resins (recycling rate 60%) and can be reused for rough washing. The water consumption per shift (8 hours) ≤5m³, 40% less than similar equipment.

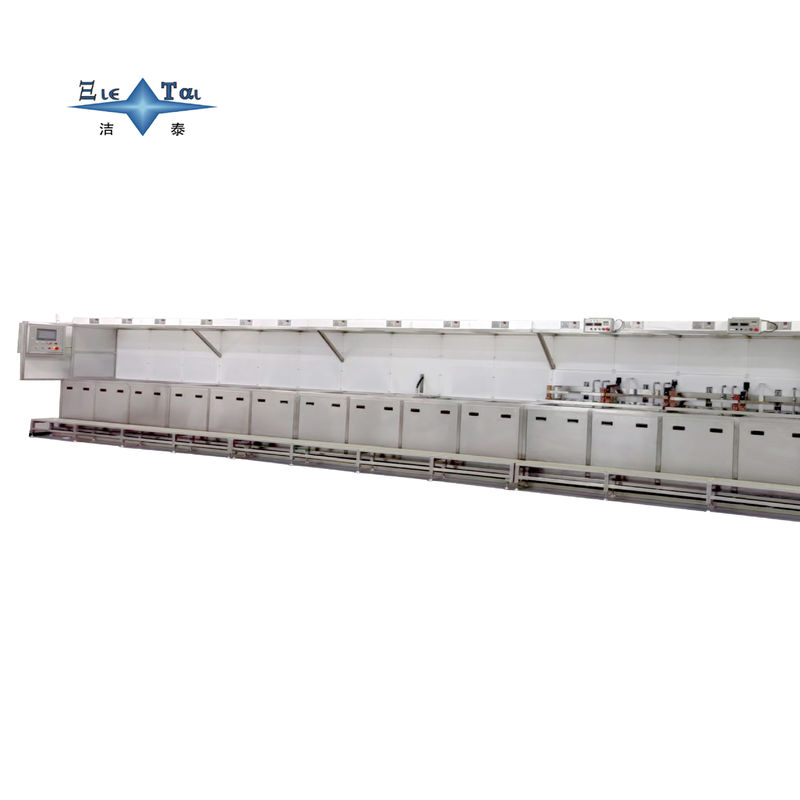

40KHz / 80KHz Ultrasound Washing Machine Valve Body Electrolytic Cleaning Line 0

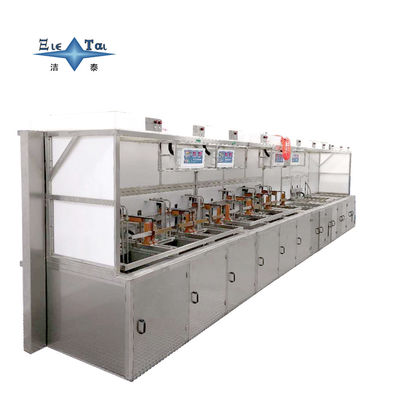

40KHz / 80KHz Ultrasound Washing Machine Valve Body Electrolytic Cleaning Line 1

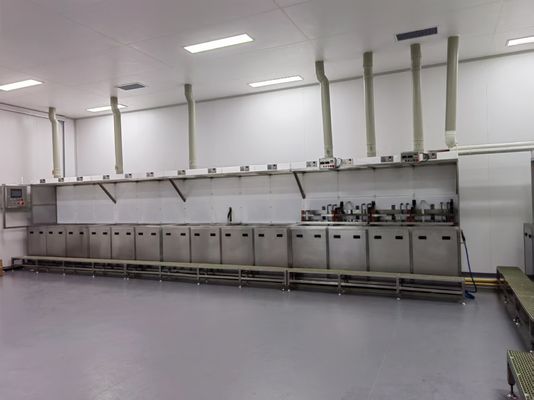

40KHz / 80KHz Ultrasound Washing Machine Valve Body Electrolytic Cleaning Line 2

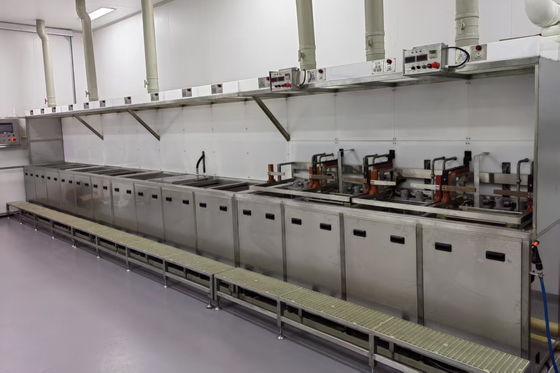

40KHz / 80KHz Ultrasound Washing Machine Valve Body Electrolytic Cleaning Line 3

40KHz / 80KHz Ultrasound Washing Machine Valve Body Electrolytic Cleaning Line 4
