Metal Stamping Parts Ultrasonic Cleaning Equipment 28KHZ - 40KHZ Tunnel Dryer

Name: Metal Stamping Parts Ultrasonic Cleaning Equipment 28KHZ - 40KHZ Tunnel Dryer
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-170972AD
Price: 1500000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-170972AD
MOQ:	1
Price:	￥1500000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Ultrasonic Cleaning Equipment

Model:

JTM-170972AD

Type:

Full-automatic Ultrasonic Cleaning Machine

Cleaning Frequency:

28KHZ-40KHZ

Cleaning Temperature:

Temperature -80℃

Power:

180KW

Weight:

10 Tons

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film. Dimensions: 15M*2.2M*3M

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

Metal Stamping Parts Ultrasonic Cleaning Equipment

Ultrasonic Cleaning Equipment 28KHZ

40KHZ Tunnel Dryer

Product Description

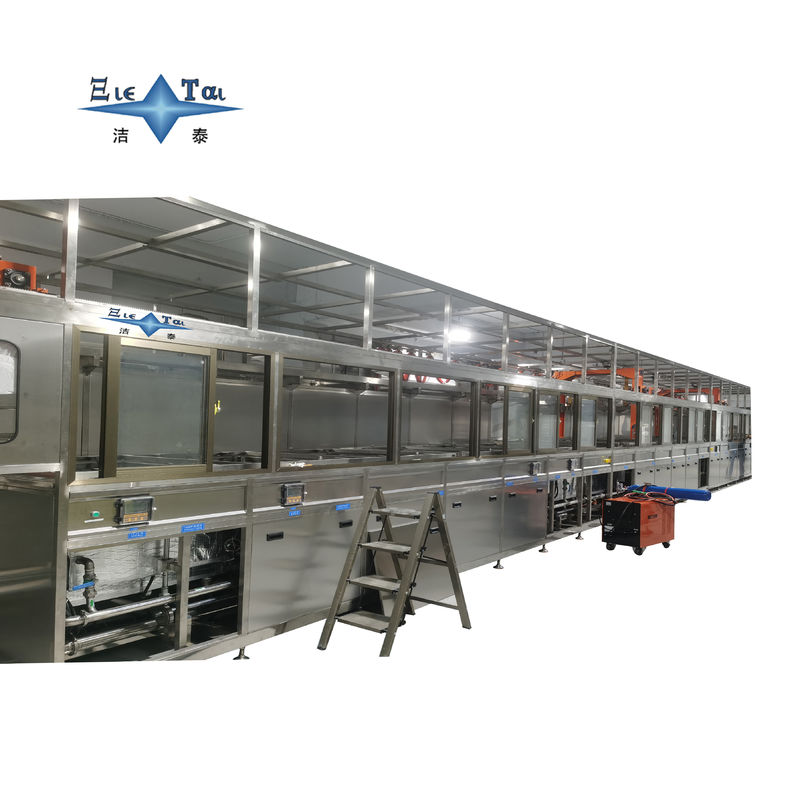

Ultrasonic Cleaning and Tunnel Drying System for Sheet Metal Stamping Parts

Focused on integrated solutions for the cleaning and drying of metal processing parts, we provide high - efficiency, energy - saving and intelligent production supporting equipment for industries such as automotive components, electronic accessories, and mechanical hardware. This helps to improve the surface treatment quality of workpieces and achieve the upgrading of automated production lines.

Tunnel - type Drying: Uniform and rapid drying with zero watermark residue
Hot Air Circulation Technology: Combining IR infrared heating and axial flow fans, the temperature uniformity within the drying tunnel is ±2℃. The moisture on the surface of workpieces evaporates rapidly within 3 - 5 minutes, preventing the formation of water stains and rust spots.

Flexible Drying Solutions: Optional mesh belt or chain plate conveying systems, with an adjustable speed of 0.5 - 5m/min, suitable for workpieces of different sizes (minimum 50mm×50mm, maximum 1500mm×1000mm); support for segmented temperature control (room temperature - 200℃) to meet the preheating requirements before plating and spraying.

Energy - efficient and Low - consumption: The insulation layer is made of 100mm - thick aluminum silicate fiberboard, with heat loss ≤5%; equipped with an intelligent start - stop system that automatically enters an energy - saving mode when idle, reducing energy consumption by 40% compared to traditional drying lines.

Metal Stamping Parts Ultrasonic Cleaning Equipment 28KHZ - 40KHZ Tunnel Dryer 1

Metal Stamping Parts Ultrasonic Cleaning Equipment 28KHZ - 40KHZ Tunnel Dryer 2

Metal Stamping Parts Ultrasonic Cleaning Equipment 28KHZ - 40KHZ Tunnel Dryer 3

Metal Stamping Parts Ultrasonic Cleaning Equipment 28KHZ - 40KHZ Tunnel Dryer 4

Metal Stamping Parts Ultrasonic Cleaning Equipment 28KHZ - 40KHZ Tunnel Dryer 5

节能低耗:保温层采用100mm厚的硅酸铝纤维板,热损失≤5%;配备智能启停系统,闲置时自动进入节能模式,与传统烘干线相比,能耗降低 40%.
