Spray Cleaning Machine
Created with Pixso. Energy-Saving Spray Cleaning Machine, Low-Noise Air Knife Cleaning System, FDA & ISO Standard Compliant

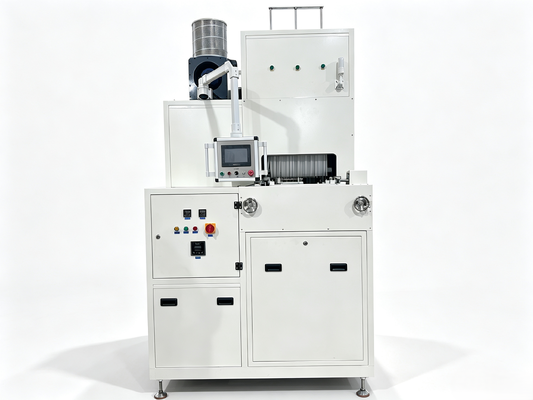

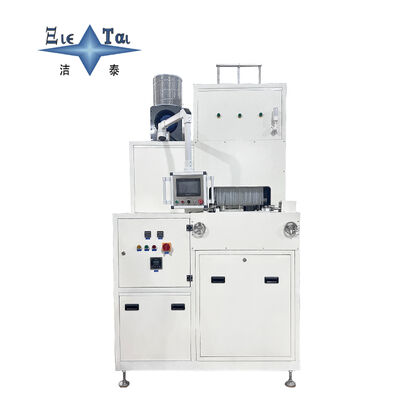

Energy-Saving Spray Cleaning Machine, Low-Noise Air Knife Cleaning System, FDA & ISO Standard Compliant
  • name
  • name

Energy-Saving Spray Cleaning Machine, Low-Noise Air Knife Cleaning System, FDA & ISO Standard Compliant

Brand Name: Jietai
Model Number: JTM-202TGS
MOQ: 1
Price: three hundred thousand
Delivery Time: 30-60work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan, Guangdong
Certification:
CE, FCC, ROHS, etc.
Name:
Spray Cleaning Machine
Model:
JTM-202TGS
Type:
Through-Type Spray Cleaning Machine
Cleaning Frequency:
50KHZ
Cleaning Temperature:
70℃
Number Of Tanks:
2
Power:
22KW
Overall Dimensions:
2.9M*1.9M*0.9M
Weight:
802KG
Packaging Details:
Packaging: Wooden case, wooden frame, stretch film.Dimensions: 2800*1800*900mm
Supply Ability:
One unit. It will take 30 to 60 days.
Product Description

Jietai Energy-Saving Low-Noise Ultrasonic Mesh Belt Spray & Air Knife Cleaning Line | FDA & ISO Standard Compliant

Core Functions & Technical Advantages

1. Mesh Belt Conveyor System – Continuous & High-Efficiency Batch Processing

Adopting premium stainless steel mesh belt transmission structure with variable frequency speed regulation (0.5–2m/min), this cleaning line adapts to workpieces of different sizes with a maximum load capacity of 10kg/m², supporting 24-hour uninterrupted continuous operation.
Equipped with anti-jamming photoelectric sensing devices, it monitors workpiece positions in real time to avoid stacking and collision. It is widely compatible with special-shaped components including flanges, gears and stamping parts. The open-type partition layout independently separates the ultrasonic cleaning zone and air knife drying zone. The through-type mesh belt design minimizes manual intervention and improves batch processing efficiency by 30% compared with traditional standalone cleaning equipment.

2. Ultrasonic & Spray Synergistic Cleaning – Full-Dimensional Dead-Corner Stain Removal

50kHz Medium-Frequency Ultrasonic Auxiliary Cleaning
The system generates 30–50μm cavitation bubbles to effectively strip stubborn contaminants such as residual cutting fluid and polishing compound hidden in blind holes and thread gaps of metal parts. Combined with the high-pressure spray system, it greatly improves the cleaning uniformity and cleanliness of complex structural workpieces, ideal for medium and small parts including screws and bearings.
50bar High-Pressure Spray Scouring System
Three sets of 45° oblique spray arms deliver 50bar high-pressure scouring for full-coverage surface cleaning without dead angles. Matched with adjustable 70°C hot pure water, it rapidly emulsifies and dissolves oily dirt.
Built-in 50μm precision magnetic filters intercept metal impurities and suspended particles in real time, effectively preventing secondary pollution of circulating cleaning fluid and extending detergent service life by 20%.

3. Intelligent Air Knife Drying – Fast & Zero-Watermark Drying

Featuring a dual air knife drying system with constant-temperature hot air at 80°C (±5°C temperature accuracy) and high-speed airflow over 20m/s, the equipment completely blows away surface residual water within 5 seconds, eliminating watermark residues caused by natural drying or traditional drying methods.
Support intelligent air volume adjustment, which automatically matches optimal drying parameters according to workpiece materials (metal / plastic). It effectively prevents thermal deformation of plastic parts while ensuring thorough drying quality.

4. Energy-Saving & Low-Noise Design, FDA & ISO Standard Compliance

Optimized airflow and circuit structure greatly reduce operating noise and energy consumption, achieving stable low-noise operation during long-term batch production. As a Jietai original manufacturer direct-supply equipment, the whole production process complies with FDA and ISO industrial standards, ensuring standardized, safe and reliable cleaning results for high-standard industrial production scenarios.

Energy-Saving Spray Cleaning Machine, Low-Noise Air Knife Cleaning System, FDA & ISO Standard Compliant

Energy-Saving Spray Cleaning Machine, Low-Noise Air Knife Cleaning System, FDA & ISO Standard Compliant

Energy-Saving Spray Cleaning Machine, Low-Noise Air Knife Cleaning System, FDA & ISO Standard Compliant

Energy-Saving Spray Cleaning Machine, Low-Noise Air Knife Cleaning System, FDA & ISO Standard Compliant

Energy-Saving Spray Cleaning Machine, Low-Noise Air Knife Cleaning System, FDA & ISO Standard Compliant
