Medical Ultrasonic Cleaner The Ultimate Solution for Maintaining a Sterile Medical Environment

Name: Medical Ultrasonic Cleaner The Ultimate Solution for Maintaining a Sterile Medical Environment
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTW-4096AD
Price: 220000 USD
Availability: InStock

Brand Name:	JeiTai
Model Number:	JTW-4096AD
MOQ:	1
Price:	￥220000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Ultrasonic Cleaning System

Ultrasonic Power:

40KW

Gross Weight:

2000KG

Model:

JTW-4096AD

Cleaning Temperature:

60℃

Overall Dimensions Of The Machine:

4.5M*1.6M*2.5M

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film. Dimensions: 4.5M*1.6M*2.5M

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

medical ultrasonic cleaner with warranty

sterile medical ultrasonic cleaner

ultrasonic cleaner for medical equipment

Product Description

Product Features: Fully Automatic Explosion-Proof Ultrasonic Cleaning System

(40kHz, 40KW, 4.5M×1.6M×2.5M)

1. ATEX/IECEx-Certified Explosion-Proof Construction

Engineered to comply with Ex d IIB T4 Gb and IECEx Ex d IIB T4 standards, the system integrates explosion-proof critical components: hermetically sealed piezoelectric transducers, flameproof electrical enclosures (IP66 rating), and static-dissipative 316L stainless steel tank bodies (surface resistance 10⁶-10⁹Ω). Pressure-relief valves and gas-tight chamber gaskets prevent flammable vapor accumulation—ideal for environments handling solvent-based contaminants. All wiring meets NFPA 70 Class I, Division 2 requirements, eliminating ignition risks in hazardous zones.

2. Fully Automated Process Integration

A Siemens S7 PLC with 12-inch touchscreen HMI enables end-to-end automation, supporting 50+ programmable cleaning-dehydration cycles. Key automated functions include:

Servo-driven automatic load/unload conveyor (speed 0.3-2.5m/min, max load 120kg/m²) with laser positioning (±1mm accuracy)

Automatic ultrasonic power modulation (30-100% of 40KW) based on real-time soil-sensing feedback

Closed-loop IPA management: auto-refill, distillation recycling (92% solvent recovery rate), and purity monitoring (≥99.5% IPA concentration)

End-of-cycle auto-discharge with batch coding for traceability, aligning with ISO 9001 process documentation requirements.

3. 40kHz Ultrasonic Cleaning Performance

Equipped with 28 high-output piezoelectric transducers (40kHz ±0.5kHz frequency stability) arranged in a matrix layout, the system delivers uniform cavitation intensity (90-130μm bubble diameter) across the 4.2M×1.4M cleaning chamber. The 40KW power module features variable frequency drive (VFD) technology, reducing energy consumption by 18% vs. fixed-power designs. It effectively removes particulate contaminants (≥5μm), mineral oils, and flux residues from complex components (e.g., aerospace fasteners, oilfield valves) without surface etching.

4. Efficient IPA Vapor Dehydration

The integrated IPA dehydration chamber utilizes precision PID temperature control (65-85℃) and vacuum-assisted vaporization to eliminate residual moisture in ≤4 minutes. A HEPA H13 filter captures IPA aerosols, while a heat exchanger recovers waste heat to preheat the cleaning solution—cutting auxiliary energy use by 22%. The dehydration process leaves a zero-residue surface, meeting ASTM F3124 standards for post-cleaning component purity.

5. Space-Optimized Engineering (4.5M×1.6M×2.5M)

The compact 4.5M (L)×1.6M (W)×2.5M (H) footprint integrates cleaning, dehydration, and solvent recovery modules into a single skid-mounted unit—reducing facility space requirements by 30% vs. split-system designs. Adjustable infeed/outfeed heights (750-1100mm) enable seamless integration with existing production lines, while side-mounted service panels provide easy access to transducers, filters, and IPA distillation components.

6. Safety & Maintenance Enhancements

Redundant safety interlocks: emergency stop (SIL 2 rated), door interlocks, and over-temperature/pressure alarms

Automatic fire suppression system (FM-200) for IPA vapor zone, compliant with OSHA 29 CFR 1910.106

Self-diagnostic system: real-time monitoring of transducer performance, IPA level, and conveyor alignment, with remote alert capability via MODBUS

Quick-change filter cartridges (5μm absolute rating) and tool-free transducer access, reducing maintenance downtime by 40%.

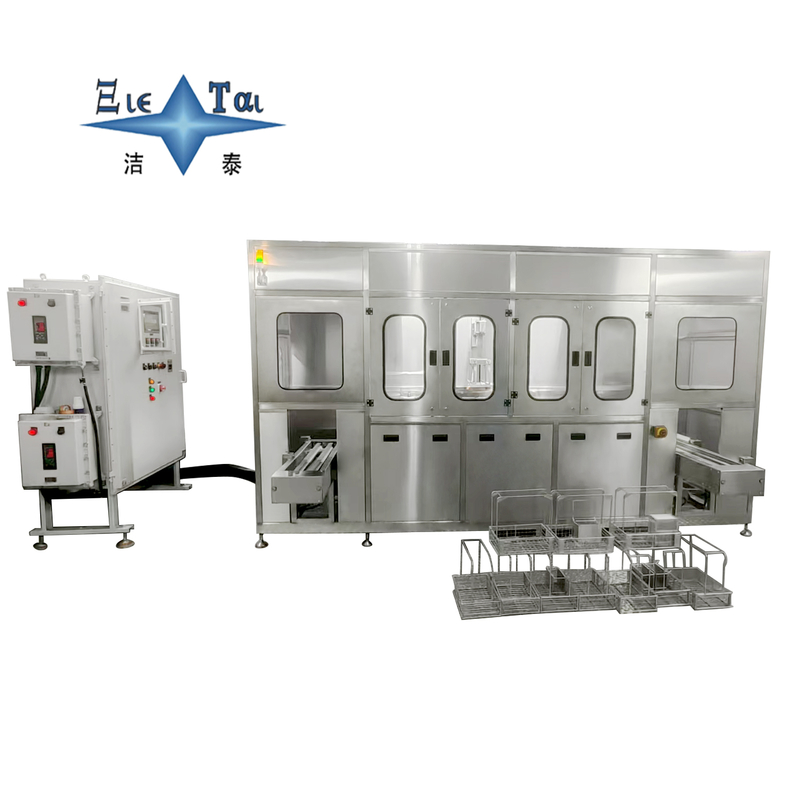

Medical Ultrasonic Cleaner The Ultimate Solution for Maintaining a Sterile Medical Environment 1

Medical Ultrasonic Cleaner The Ultimate Solution for Maintaining a Sterile Medical Environment 2

Medical Ultrasonic Cleaner The Ultimate Solution for Maintaining a Sterile Medical Environment 3

Medical Ultrasonic Cleaner The Ultimate Solution for Maintaining a Sterile Medical Environment 4
