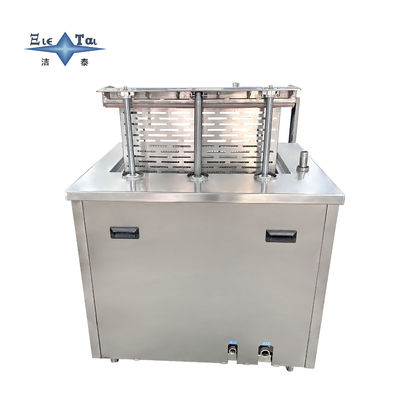

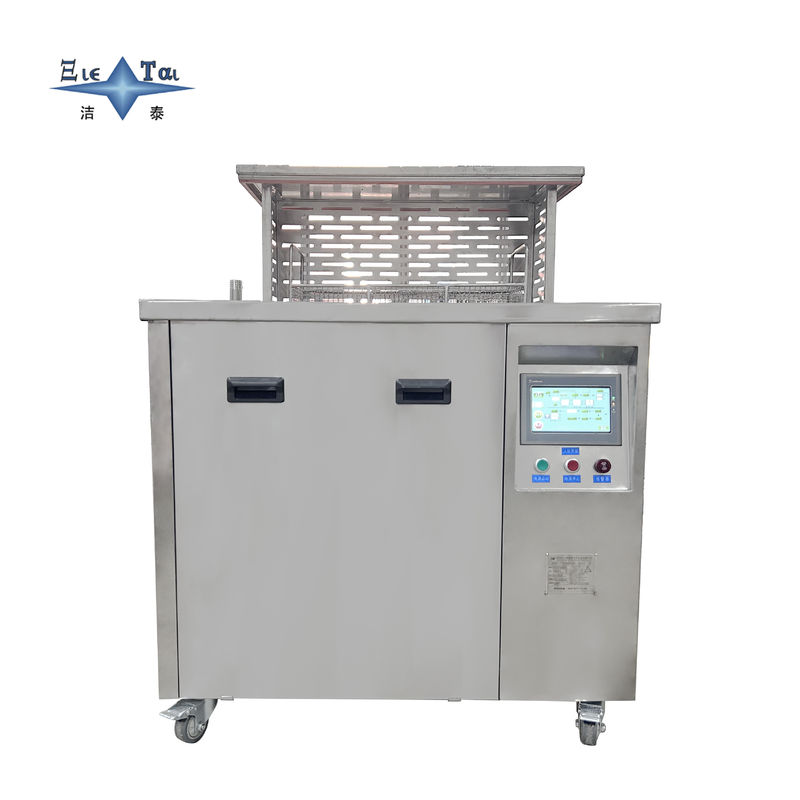

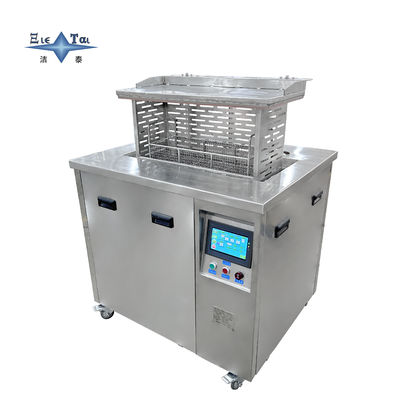

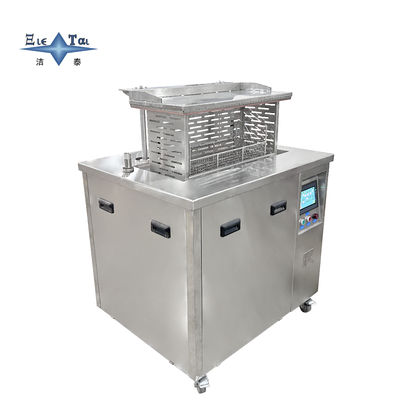

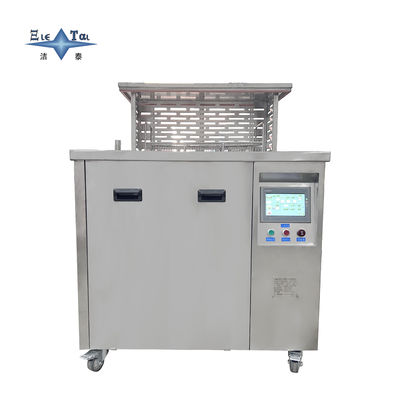

Jietai Medical Boiling Tank Cleaning System
—— Whole process cleaning and sterilization solutions for medical devices
Product positioning
The intelligent cleaning equipment specially designed for the medical device industry integrates three core modules: boiling disinfection, precise temperature control, and intelligent lifting, and achieves a 99.99% bacterial killing rate and 0.1ppm organic residue standard for contaminants (bloodstains/tissue residues/lubricants) such as surgical instruments (scalpels/tweezers), dental tools, and endoscopic accessories. The equipment has passed the ISO 13485 medical device quality management system certification, and is compatible with stainless steel, titanium alloy, polymer materials and other materials, which can meet the cleaning and sterilization needs of hospital supply rooms, operating rooms, dental clinics and other scenarios, and the surface tension of the instruments after cleaning is ≥ 72mN/m, which meets the WS 310.2-2016 "Hospital Disinfection Supply Center Part 2" standard.
Core technical advantages
1. Medical-grade boiling and disinfection system
1. High temperature sterilization technology
Precise temperature control system
▶ Temperature range: 40-100°C (accuracy ±0.5°C) with custom sterilization programs (e.g., 93°C for 30 minutes to kill prions)
▶ Bimetal Thermostat Over-temperature protection: When the temperature exceeds the set value of 10°C, the power supply will be automatically cut off and the cold water circulation will be started to cool down
▶ Real-time temperature profile recording: Data output via RS485 interface meets FDA 21 CFR Part 11 electronic recording requirements
Multiple sterilization guarantees
✔ The boiling tank is made of 316L stainless steel monolithically forged (6mm thick) and the inner wall is electrolytically polished (Ra≤0.2μm) to reduce bacterial adhesion
✔ Equipped with an ozone generator (concentration ≥ 0.3mg/L) to achieve "boiling ozone" synergistic sterilization, the spore killing rate is increased to 99.999%
2. Intelligent cycle cleaning
Three-stage filtration system:
(1) 500μm stainless steel strainer (intercepts surgical sutures, gauze debris)
(2) 100μm nylon filter cartridge (captures metal debris, bone chips)
(3) Activated carbon adsorption column (removal of cleaning agent residue, TOC≤0.5ppm)
Flow sensor (±2% accuracy) monitors circulating pump status and automatically switches to backup circuit in case of blockage (response time<10 seconds)

Intelligent control system
1. Whole-process automation
Workpiece Identification System:
▶ Industrial camera (12 million pixels resolution) automatically identifies the instrument type and matches the cleaning basket attachment (positioning accuracy ±0.3mm)
▶ The weight sensor (accuracy ±.1kg) monitors the load in real time and triggers overload protection when the limit is exceeded
Data Traceability Function:
✔ A sterilization report (PDF format) is generated for each batch with temperature curves, ozone concentrations, and rise and fall records, with a storage cycle of 5 years
✔ Docking with hospital traceability system (HL7 protocol), automatically push alarms to department administrators when abnormal (response time<2 seconds)
2. Safety redundancy design
Electrical Safety:
▶ Double Ground (Ground Resistance ≤4Ω) Leakage Protection (Operating Current≤30mA)
▶ All cables are insulated with medical-grade silicone rubber (temperature resistance - 60~200°C)
Machinery Safety:
✔ Lifting mechanism limit switch (double redundant design), power off within 0.05 seconds when overtraveling
✔ The groove edge is rounded (R≥5mm) to prevent the operator from scratching
