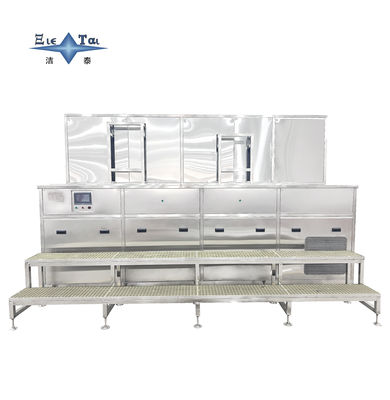

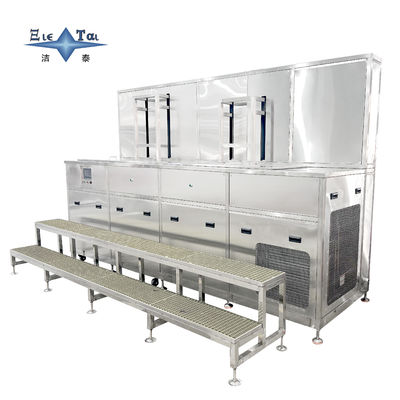

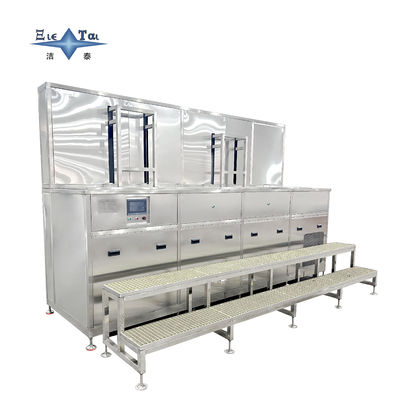

Hardware Industry, Vapor-Phase Ultrasonic Cleaning Machine, Ultrasonic Cleaning, Steam Drying, Lifting System

Product positioning
The full-process cleaning and drying equipment specially designed for metal processing parts (bearings/gears/fasteners/stamping parts) integrates three core modules: dual-frequency ultrasonic cleaning, vapor phase vacuum drying, and intelligent lifting system, and achieves 99.8% oil removal rate and 0.1μm particle cleanliness for cutting fluid residues (mineral oil/synthetic esters), abrasive paste, metal chips and other pollutants. The equipment is compatible with full-size workpieces from M2 screws to 200mm bearings, meeting the high-precision cleaning requirements of metal plating, spraying and assembly, and the surface tension of the workpiece after drying is ≥ 72mN/m, eliminating secondary pollution such as watermarks and oil films.
Intelligent lifting system
1. Compatible with full-size workpieces
Heavy-duty lifting mechanism
▶ The load capacity ≤ 200kg (standard type) / 500kg (customized type), and the servo motor ball screw drive is adopted, and the positioning accuracy is ±1mm
▶ Adjustable speed (5-50mm/s): Automatically switch to 5mm/s low speed mode when the workpiece enters the water to prevent splashing of cleaning liquid and air bubble retention
Profiling chemical design
✔ Standard mesh hanging basket (aperture 5mm) adjustable divider, suitable for screws, bearings, gears and other special-shaped parts
✔ For deep-hole workpieces (e.g. hydraulic valve body cavity), a hollow bracket (> 80% opening) can be customized to ensure unobstructed transmission of ultrasonic energy.
Value-added service system
1. Special support for the hardware industry
Free sample test: customers provide workpiece and contaminant samples, and issue a cleaning effect test report within 48 hours (including oil film residue and particle size analysis)
Customized chemical assembly design: for special-shaped parts (such as multi-station stamping parts), the proofing of polyoxymethylene (POM) positioning fixture will be completed within 10 working days (positioning error<0.5mm)
2. Full-cycle O&M guarantee
Intelligent fault warning: Vibration sensor to monitor ultrasonic transducer abnormalities (98% accuracy) and pressure sensor to warn of lifting system jams (response time< 15 seconds)
Fast spare parts response: 1 set of wearing parts (filter element, sealing ring) is standard, and the core components (ultrasonic power supply, vacuum pump) are delivered within 48 hours nationwide
3. Environmental compliance support
The solvent-based equipment is equipped with an activated carbon adsorption box as standard (exhaust gas treatment efficiency 90%), and the emission meets the GB 37822-2019 "Fugitive Emission Control Standard for Volatile Organic Compounds"
The water-based equipment is equipped with an oil-water separator (separation accuracy of 5μm), and the wastewater COD is ≤80mg/L, which meets the discharge standards of the hardware industry
