Spray Ultrasonic Cleaning Line High Pressure Industrial Ultrasonic Cleaning Equipment 40KHZ , 80KHZ

Name: Spray Ultrasonic Cleaning Line High Pressure Industrial Ultrasonic Cleaning Equipment 40KHZ , 80KHZ
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-2801721AD
Price: 2000000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-2801721AD
MOQ:	1
Price:	￥2000000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Ultrasonic Cleaning Line

Model:

JTM-2801721AD

Cleaning Frequency:

40KHZ、80KHZ

Cleaning Temperature:

80℃

Overall Dimensions:

21M*2M*2.8M

Weight:

12 Tons

Number Of Tanks:

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions:20M*2M*2.8M

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

Spray Ultrasonic Cleaning Line

Ultrasonic Cleaning Line High Pressure

Industrial Ultrasonic Cleaning Equipment 40KHZ

Product Description

Jietai High-Pressure Spray Ultrasonic Cleaning Line | Residue-Free Cleaning For Deep Holes And Blind Holes

Intelligent Full-Automatic Cleaning System —— Core Standard for Industrial Unmanned Production

Full-Process Automation: Redefining Cleaning Efficiency
As an intelligent cleaning equipment for the Industry 4.0 era, this machine is equipped with a PLC + touchscreen control system to achieve full-process automation from cleaning liquid 配比 (mixing) and ultrasonic parameter adjustment to drying completion:

One-Touch Smart Program: Presets 5 sets of universal cleaning modes (e.g., degreasing metal parts, dusting electronic components, descaling glass products), supporting custom storage of 20 sets of exclusive process parameters. It completes the entire process of "loading → cleaning → rinsing → drying → unloading" without manual intervention.
Dynamic Sensor Matrix: Integrates 12 groups of sensors (liquid level, temperature, current, pressure, etc.) to monitor the cleaning tank status in real time. Abnormal conditions automatically trigger safety protection and push alarm messages to the central control system.
Workpiece Recognition Linkage: Optional visual recognition module automatically identifies workpiece types and matches optimal cleaning parameters (frequency, time, temperature), adapting to multi-variety mixed-production scenarios.

Adaptive Ultrasonic Technology: Precise Response to Complex Working Conditions

Wide-Frequency Intelligent Frequency Conversion System: 20-120kHz automatic frequency scanning dynamically adjusts cavitation effects for different material workpieces —— the 28kHz low-frequency mode breaks down heavy oil stains on automotive parts, while the 80kHz high-frequency mode removes micron-level impurities from chip pins, with a cleaning consistency of 99.2%.
Intelligent Power Compensation Algorithm: Real-time monitoring of transducer load, automatic adjustment of output power (40-100% stepless speed regulation), ensuring power fluctuation ≤±2% after 8 consecutive hours of operation to avoid cleaning blind spots caused by workpiece size changes.
Intelligent Activation of Chemical Efficiency: Pipeline heating system combined with PID algorithm achieves ±0.5°C precise temperature control, automatically matching the optimal reaction temperature of cleaning agents (e.g., 60°C activates the degreasing efficiency of 10% sodium hydroxide solution).

Unattended Safety Design: Industrial-Grade Durability Assurance

Triple Intelligent Protection System:
- Overload Protection: Cuts off ultrasonic power and alarms within 0.2 seconds when current exceeds 15% of the rated value.
- Dry-Burning Prevention Linkage: Automatically pauses heating and initiates the liquid replenishment program (automatic replenishment of pre-mixed cleaning solution) when the liquid level is below the safety line.
- Leakage Monitoring: 30mA leakage circuit breaker responds to grounding faults within 0.1 seconds, combined with a 2H hardness spray-painted shell (grounding resistance ≤4Ω), complying with GB/T 19670-2005 electrical safety standards.
Long-Life Core Components: 2mm thick 316L stainless steel inner tank resistant to acid and alkali (pH 2-13), all-aluminum structure transducers with a service life of over 100,000 hours —— 50% more durable than traditional ceramic transducers.

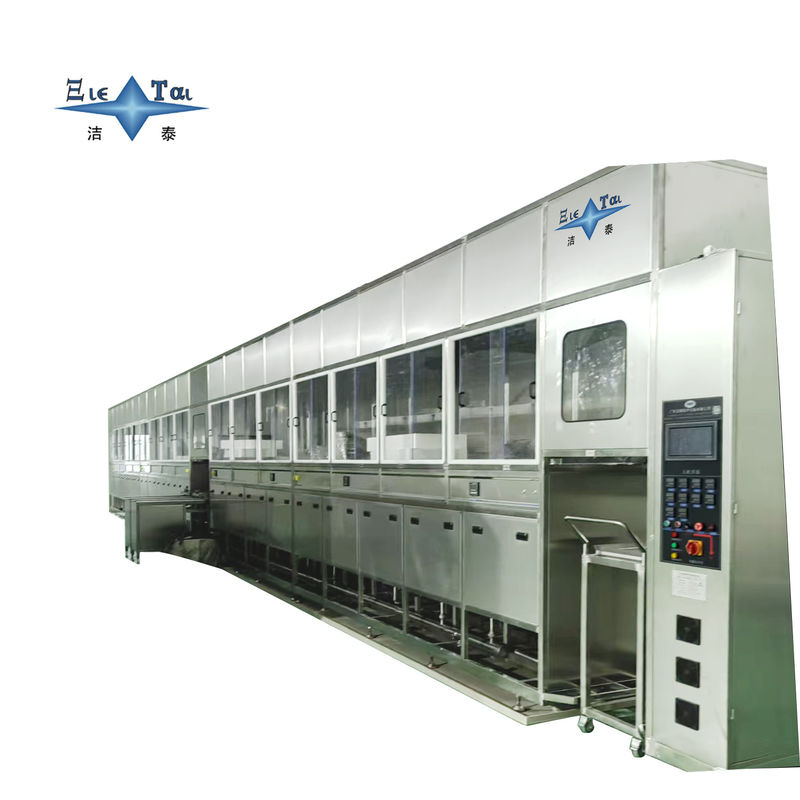

Spray Ultrasonic Cleaning Line High Pressure Industrial Ultrasonic Cleaning Equipment 40KHZ , 80KHZ 0

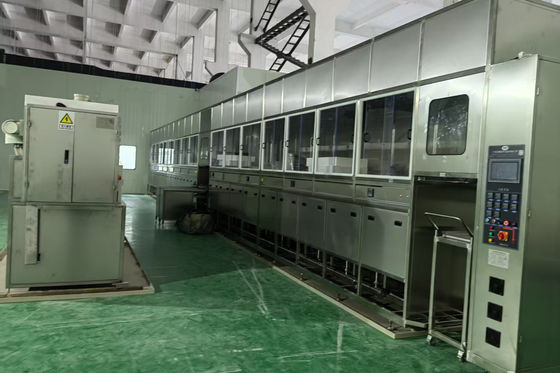

Spray Ultrasonic Cleaning Line High Pressure Industrial Ultrasonic Cleaning Equipment 40KHZ , 80KHZ 1

Spray Ultrasonic Cleaning Line High Pressure Industrial Ultrasonic Cleaning Equipment 40KHZ , 80KHZ 2

Spray Ultrasonic Cleaning Line High Pressure Industrial Ultrasonic Cleaning Equipment 40KHZ , 80KHZ 3

Spray Ultrasonic Cleaning Line High Pressure Industrial Ultrasonic Cleaning Equipment 40KHZ , 80KHZ 4
