Ultrasonic Mold Cleaning Machine
Created with Pixso. Customized Ultrasonic Mold Cleaning Machine 90KW Ultrasonic Cleaning Systems 28KHZ
Customized Ultrasonic Mold Cleaning Machine 90KW Ultrasonic Cleaning Systems 28KHZ
  • name
  • name

Customized Ultrasonic Mold Cleaning Machine 90KW Ultrasonic Cleaning Systems 28KHZ

Brand Name: Jietai
Model Number: JTM-40486FD
MOQ: 1
Price: 150000
Delivery Time: 30-60work days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan, Guangdong
Certification:
CE, FCC, ROHS, etc
Name:
Ultrasonic Mold Cleaning Machine
Cleaning Temperature:
1-80℃
Weight:
1.3 Tons
Power:
90KW
Overall Dimensions:
7.1M×2.5M×3.3M
Number Of Tanks:
4
Cleaning Frequency:
28KHZ
Type:
Semi-Automatic Ultrasonic Cleaning Machine
Model:
JTM-40486FD
Packaging Details:
Packaging: Wooden case, wooden frame, stretch film.Dimensions:7100*2500*3300mm
Supply Ability:
One unit. It will take 30 to 60 days.
Highlight:

Customized Ultrasonic Mold Cleaning Machine

,

Ultrasonic Mold Cleaning Machine 90KW

,

Ultrasonic Cleaning Systems 28KHZ

Product Description

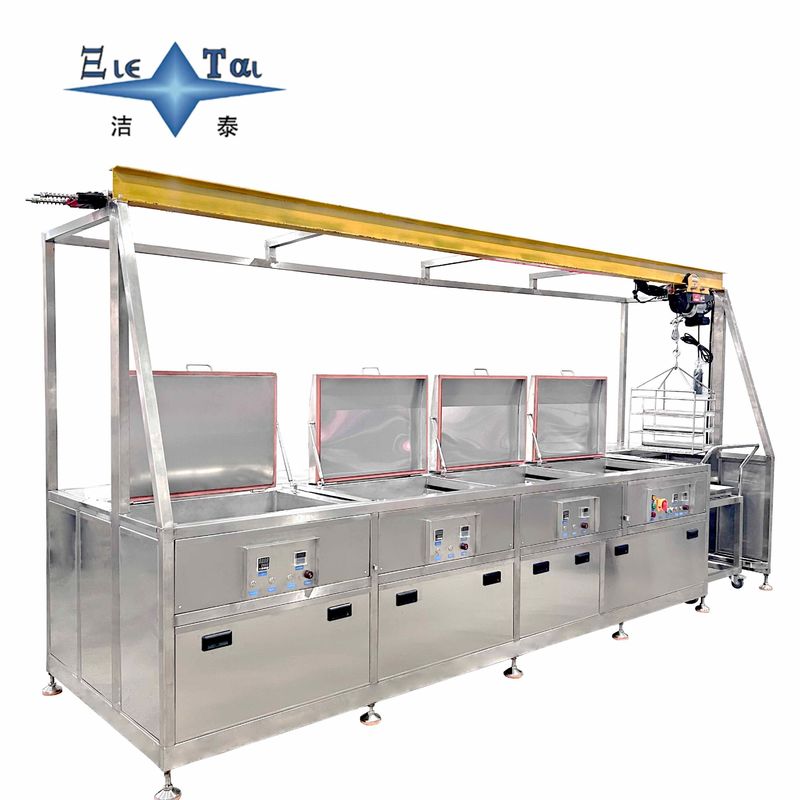

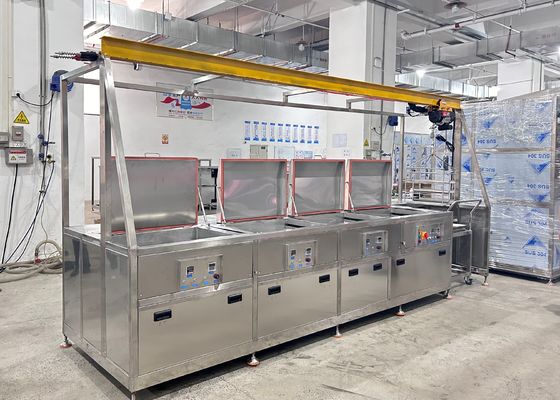

Customized 90KW Electric Hoist Ultrasonic Cleaning Machine / Jietai Manufacturer





Adjustable Cleaning Tank Design: The cleaning tank is made of 8mm thickened stainless steel 304 (customizable sizes range from 600×800×500mm to 2000×3000×1200mm). The inner wall features a 45° diversion slope, which, combined with the matrix layout of transducers at the bottom, ensures a sound field uniformity of ≥95%. The tank is standardly equipped with a liquid level protection device to prevent equipment damage caused by dry burning.

Intelligent Temperature Control Heating System: It is equipped with an integrated constant-temperature heating module (temperature controllable from 30 - 80°C), supporting heating for water-based and solvent-based cleaning agents. In scenarios involving high-melting-point greases (such as gearbox grease), the cleaning efficiency is increased by 50% after heating. Combined with ultrasonic vibration, it achieves dual decontamination of "dissolving + peeling".

Simple Control System: The human-machine interface integrates functions such as ultrasonic power adjustment, heating on/off, and timing (0 - 99 minutes). Equipped with an emergency stop switch and overload protection device, it is easy to operate and safe. An optional PLC upgrade module supports the presetting of multi-stage cleaning programs.
Service Advantages: From Process Validation to Full Lifecycle Support

  • Free Sample Testing: Customers provide workpiece samples, and engineers simulate actual working conditions through the equipment to issue a Process Validation Report covering cleanliness testing, energy consumption analysis, and optimal parameters.
  • Customized Programming Services: Develop exclusive control programs in depth according to customers’ special process requirements (such as military-grade cleaning standards and pharmaceutical GMP specifications), and provide long-term software upgrades.
  • Intelligent Operation and Maintenance Services: The equipment is equipped with an IoT module, allowing engineers to remotely diagnose faults and push solutions. Key components are covered by a 5-year extended warranty to ensure that production line downtime is ≤1 hour per year.
