Hardware Parts Ultrasonic Cleaner 23KW Air Knife Conveyor Belt Cleaner 50KHz

Name: Hardware Parts Ultrasonic Cleaner 23KW Air Knife Conveyor Belt Cleaner 50KHz
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-200TGS
Price: 300000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-200TGS
MOQ:	1
Price:	￥300000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Parts Ultrasonic Cleaner

Type:

Through-Type Spray Cleaning Machine

Cleaning Frequency:

50KHz

Cleaning Temperature:

60℃

Weight:

802KG

Power:

23KW

Number Of Tanks:

Overall Dimensions:

2.6M*1.5M*0.9M

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions: 2800*1800*900mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

Hardware Parts Ultrasonic Cleaner

Parts Ultrasonic Cleaner 23KW

Air Knife Conveyor Belt Cleaner 50KHz

Product Description

Specialized For Precision Hardware Parts: Ultrasonic Spray And Air Knife Cleaning Line, Mesh Belt Conveyor Type Fully Automatic Drying Integrated Machine.

PLC Intelligent Control System

Equipped with a touchscreen operation interface, it allows presetting multiple cleaning programs (such as cleaning time, ultrasonic power, spray pressure, conveying speed, etc.), supporting one-click switching to accommodate diverse workpiece cleaning requirements.
It real-time monitors the system's operating status (such as liquid level, temperature, and air pressure), automatically alarms and records faults for easy maintenance and repair.

Safety Protection Configuration

Fully enclosed cleaning chamber with a magnetic safety door that stops operation and cuts power immediately when opened.
The spray system is equipped with splash-proof baffles to reduce water mist overflow.
Electrical components are waterproof and moisture-proof, meeting the IP54 protection rating.
Performance Advantages
- Leading Efficiency: The continuous operation mode of the mesh belt increases the cleaning efficiency by 50% compared with traditional single - machine cleaning and reduces labor costs by 40%. It is suitable for seamless connection with automated production lines.
- Guaranteed Cleanliness: The synergistic process of ultrasonic and spraying achieves an oil removal rate of 99.2%. After air knife drying, the water content on the surface of workpieces is less than 0.1%, meeting the requirements of high - precision assembly.
- Cost Optimization: The cleaning fluid is recycled (combined with a filtration system), reducing the cost of consumables by 25% compared with similar equipment. The service life of the equipment is ≥8 years (with a 2 - year warranty for core components).

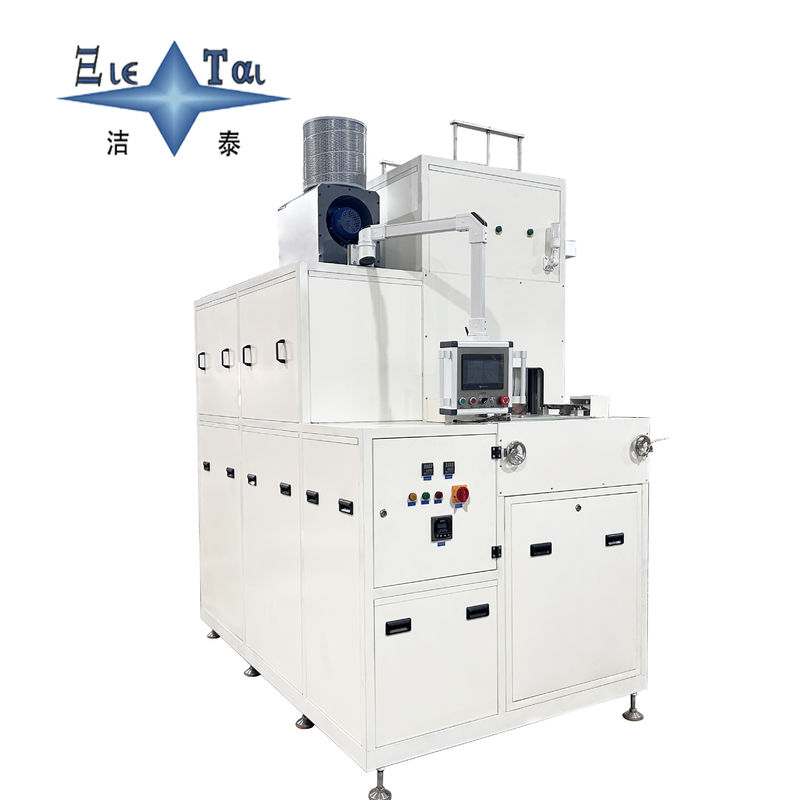

Hardware Parts Ultrasonic Cleaner 23KW Air Knife Conveyor Belt Cleaner 50KHz 0

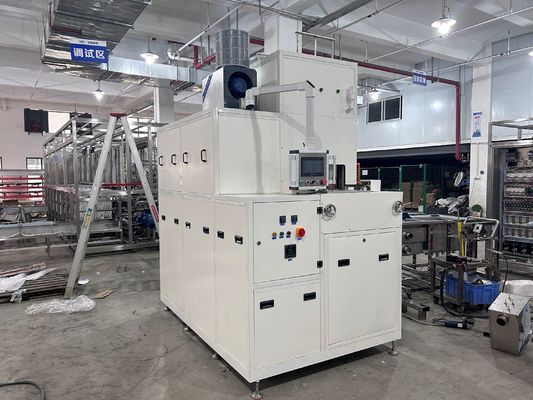

Hardware Parts Ultrasonic Cleaner 23KW Air Knife Conveyor Belt Cleaner 50KHz 1

Hardware Parts Ultrasonic Cleaner 23KW Air Knife Conveyor Belt Cleaner 50KHz 2

Hardware Parts Ultrasonic Cleaner 23KW Air Knife Conveyor Belt Cleaner 50KHz 3

Hardware Parts Ultrasonic Cleaner 23KW Air Knife Conveyor Belt Cleaner 50KHz 4
