22KW Spray Cleaning Machine Pass Through Spray Cleaning Equipment Customized

Name: 22KW Spray Cleaning Machine Pass Through Spray Cleaning Equipment Customized
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-201TGS
Price: 300000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-201TGS
MOQ:	1
Price:	￥300000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Mesh Belt Conveyor Spray + Air Knife Integrated Cleaning Line

Model:

JTM-201TGS

Type:

Through-Type Spray Cleaning Machine

Cleaning Temperature:

70℃

Cleaning Frequency:

50KHZ

Overall Dimensions:

2.8M*1.8M*0.8M

Power:

22KW

Weight:

800KG

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.Dimensions: 2800*1800*900mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

22KW Spray Cleaning Machine

Pass Through Spray Cleaning Equipment

Spray Cleaning Equipment Customized

Product Description

Jietai/Customized, Pass-Through Ultrasonic Spraying Cleaning Machine

Full-range Coverage, the Top Choice for Customization

Solutions for Typical Industries

Automotive Parts: For the water jackets of engine cylinder heads (with an aperture ≥ 5mm), a combination of rotating spraying and brush assistance (brush filament diameter 0.2mm) is adopted to remove the residues of casting sand cores. The measured cleanliness meets the VDA 19.1 standard (particle weight ≤ 5mg per piece).
Electronics and Telecommunications: 5bar low-pressure spraying is used to clean the aluminum alloy cavities of 5G filters. Paired with anti-static ionizing air bars (residual voltage < 100V), it prevents the adsorption of dust particles during the drying process, increasing the yield rate to 99.2%.
Hardware and Sanitary Ware: For the internal threads of faucet inner walls (thread pitch 1.5mm), 0.8mm fine-hole nozzles and 30° inclined spraying are applied to achieve blind - spot-free cleaning. The pass rate of pretreatment for salt spray tests reaches 100%.

Flexible Customization Capabilities

Specialized Fixture Design: Exclusive clamping solutions are developed according to the CAD drawings of workpieces (such as support fixtures for thin-walled parts and anti-blocking tools for multi-hole parts), ensuring no blind spots in spraying and increasing the cleaning pass rate of complex structural parts by 40%.
Functional Module Expansion: Optional accessories include ultrasonic vibrating plates (dual frequencies of 28kHz/40kHz), UV sterilization devices (for medical instruments), and weighing detection modules (for analyzing the weight difference before and after cleaning) to meet personalized process requirements.

Full-cycle Service Guarantee

7×24-hour Response: Six major service centers nationwide (North China, East China, South China, Central China, Southwest China, Northwest China) stock a full range of vulnerable parts (nozzles, filters, chains) and can arrive on-site within 4 hours.
Free Process Debugging: Engineers will stay at the factory for 3 days to optimize the spraying parameters according to the workpiece material (aluminum alloy/stainless steel/cast iron) and pollution type (oil stains/debris/oxides), ensuring that the pass rate of the first piece is ≥ 95%.

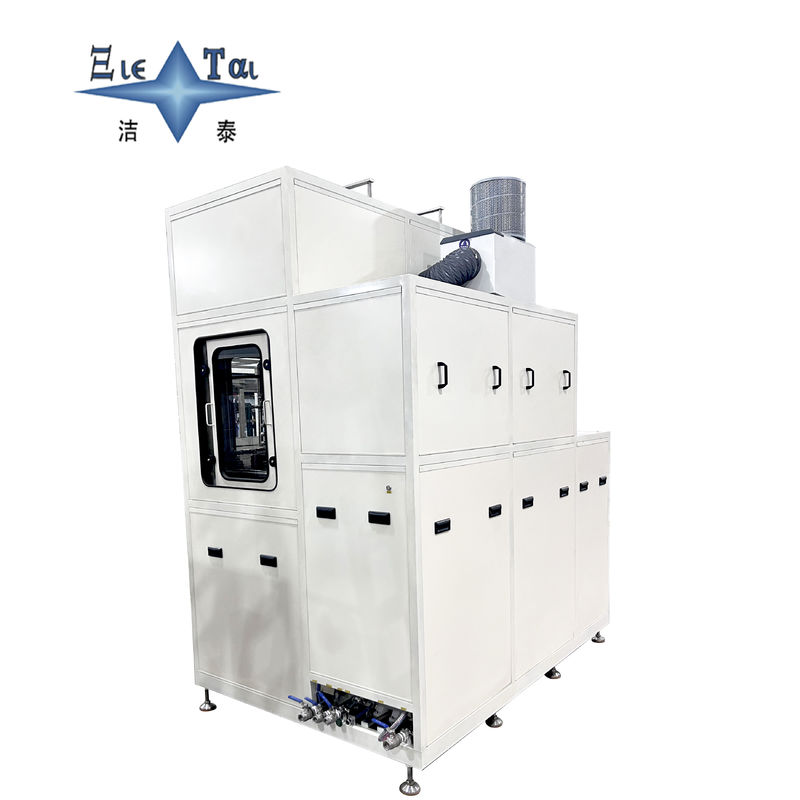

22KW Spray Cleaning Machine Pass Through Spray Cleaning Equipment Customized 0

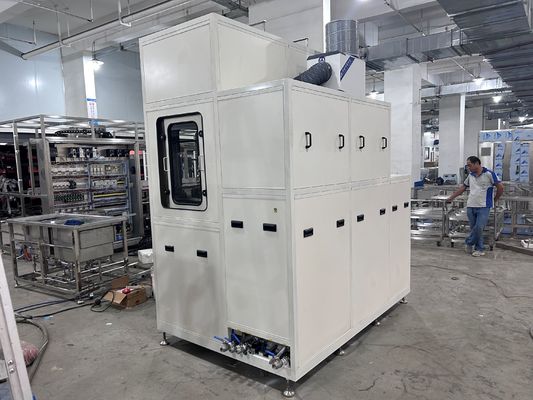

22KW Spray Cleaning Machine Pass Through Spray Cleaning Equipment Customized 1

22KW Spray Cleaning Machine Pass Through Spray Cleaning Equipment Customized 2

22KW Spray Cleaning Machine Pass Through Spray Cleaning Equipment Customized 3

22KW Spray Cleaning Machine Pass Through Spray Cleaning Equipment Customized 4
