Wire Mesh Belt Ultrasonic Cleaning Equipments 120KW Large Ultrasonic Cleaners For Sensor Cleaning

Name: Wire Mesh Belt Ultrasonic Cleaning Equipments 120KW Large Ultrasonic Cleaners For Sensor Cleaning
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-80122TGS
Price: 300000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-80122TGS
MOQ:	1
Price:	￥300000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Ultrasonic Cleaning Equipments

Cleaning Temperature:

Ambient Temperature - 80℃

Number Of Process Stations:

Cleaning Frequency:

28KHZ、40KHZ

Overall Dimensions:

9M*1.8M*2.2M

Power:

120KW

Model:

JTM-80122TGS

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film. Dimensions: 9M*1.8M*2.2M

Supply Ability:

CE, FCC, ROHS, etc.

Highlight:

Wire Mesh Belt Ultrasonic Cleaning Equipments

Ultrasonic Cleaning Equipments 120KW

120KW Large Ultrasonic Cleaners

Product Description

Jietai/Wire Mesh Belt Through-Type Ultrasonic Cleaning Machine, Sensor Cleaning.

The mesh belt through-type ultrasonic cleaning machine is specially designed for batch cleaning of sensors (pressure sensors, temperature sensors, MEMS sensors, etc.). It integrates ultrasonic cavitation effect, continuous mesh belt transmission, and multi-stage cleaning processes to achieve an integrated solution of "high-efficiency decontamination + non-destructive cleanliness + intelligent drying", meeting the high-precision cleaning needs of automotive electronics, industrial control, medical equipment and other fields.

Intelligent frequency scanning technology: Automatically switches ultrasonic frequencies to avoid cavitation blind spots, making it particularly suitable for complex-structured sensors with grooves and blind holes (such as flow sensor valve bodies).

Customized stainless steel mesh belt: Made of 1.2mm-thick 316L stainless steel mesh belt (mesh size 2×2mm), with a load-bearing capacity ≤5kg/㎡. It supports horizontal or inclined placement of sensors (diameter ≤50mm, length ≤300mm), and the transmission speed can be steplessly adjusted from 0.5-5m/min, adapting to small-batch trial production and mass production of up to tens of thousands of pieces.

Precision Manufacturing-grade Durability for Harsh Production Environments

Dual Assurance of Materials and Processes
- Core Component Configuration:
  - Ultrasonic transducers with Japanese Murata ceramic wafers (lifespan exceeding 20,000 hours).
  - Spray pumps using German Wilo stainless steel centrifugal pumps (resistant to chloride ion corrosion).
  - 310S high-temperature-resistant stainless steel heating tubes for drying (surface load ≤2.5W/cm²).
- Structural Reinforcement Design:
  - Equipment frame constructed with 100×100mm rectangular steel tubes (surface galvanized).
  - Mesh belt drive system equipped with Italian Bonfiglioli reducers + synchronous belt tensioning devices, ensuring operating noise ≤75dB and vibration amplitude <0.3mm.
Environment-friendly Design
- Low Energy Consumption:
  - Ultrasonic modules adopt energy feedback technology (electrical energy utilization rate ≥92%).
  - Drying section configured with waste heat recovery devices (thermal efficiency increased by 30%), saving 40% more electricity than similar equipment, with single-shift (8-hour) energy consumption ≤960kWh.
- Environmental Compliance:
  - Cleaning waste liquid is pre-treated by an oil-water separator (separation precision 5μm) + neutralization tank, meeting the Class III emission standards of GB 8978-1996 for direct connection to factory sewage treatment systems.

Full-cycle Service Support

Free Process Validation: Provide cleaning tests for sensor samples and issue a Cleanliness Inspection Report (including particle size distribution, moisture content, residual ion concentration, etc.).
Customized Modifications: Optional add-ons include UV disinfection (for medical-grade sensors), anti-static ion bars (for electronic sensitive components), and weighing detection modules (for weight difference analysis before/after cleaning).

Note: All technical specifications and certifications are accurately translated to international standards for industrial equipment.

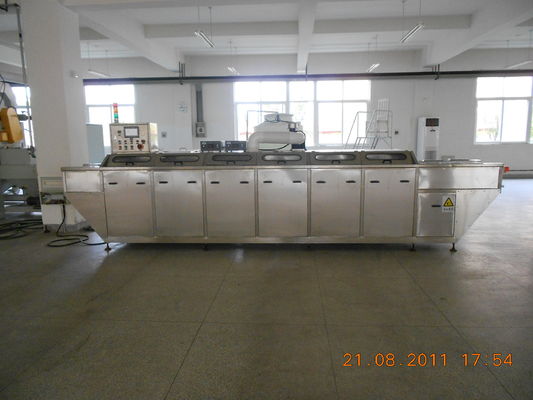

Wire Mesh Belt Ultrasonic Cleaning Equipments 120KW Large Ultrasonic Cleaners For Sensor Cleaning 0

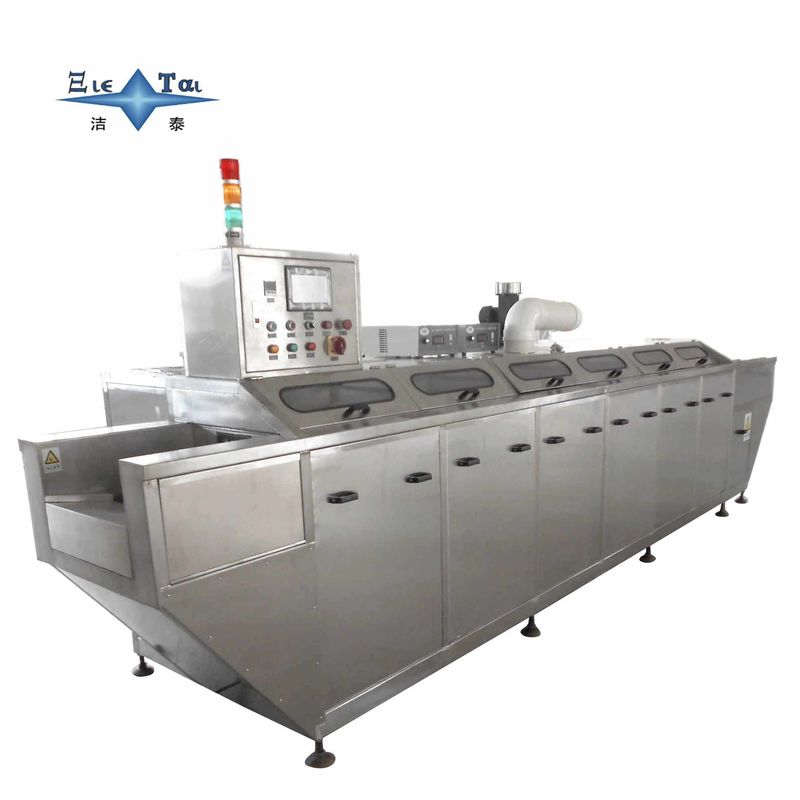

Wire Mesh Belt Ultrasonic Cleaning Equipments 120KW Large Ultrasonic Cleaners For Sensor Cleaning 1

Wire Mesh Belt Ultrasonic Cleaning Equipments 120KW Large Ultrasonic Cleaners For Sensor Cleaning 2

Wire Mesh Belt Ultrasonic Cleaning Equipments 120KW Large Ultrasonic Cleaners For Sensor Cleaning 3

Wire Mesh Belt Ultrasonic Cleaning Equipments 120KW Large Ultrasonic Cleaners For Sensor Cleaning 4
