Medical Ultrasonic Cleaner
Created with Pixso. 28KHz Ultrasonic Bath Cleaner 360W Ultrasonic Cleaner For Electronics And Mechanical Gears

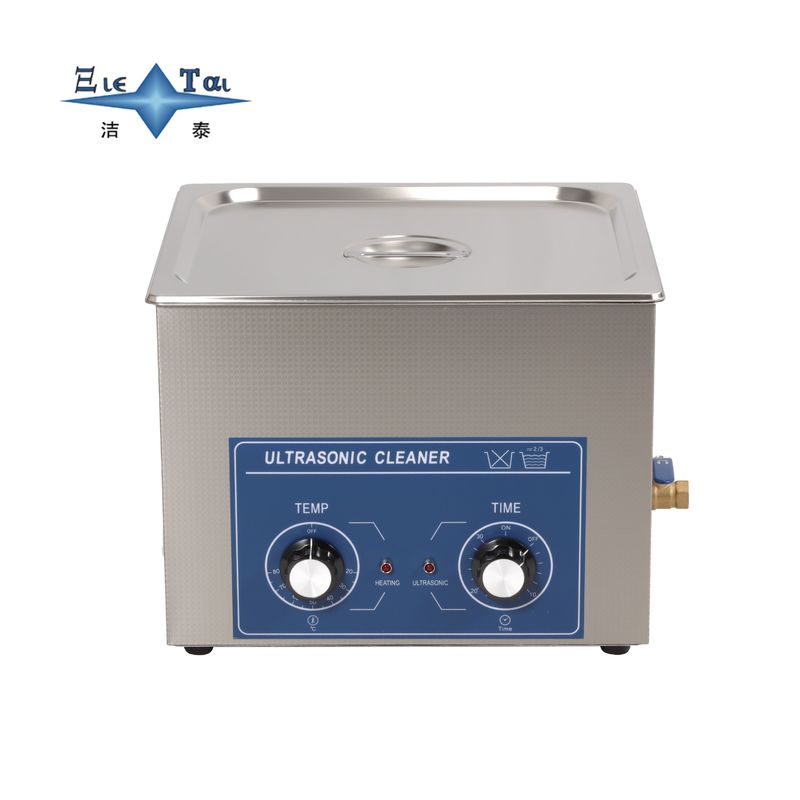

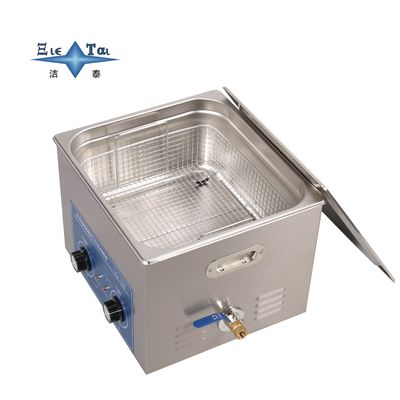

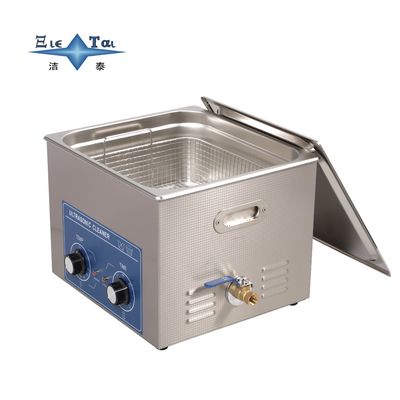

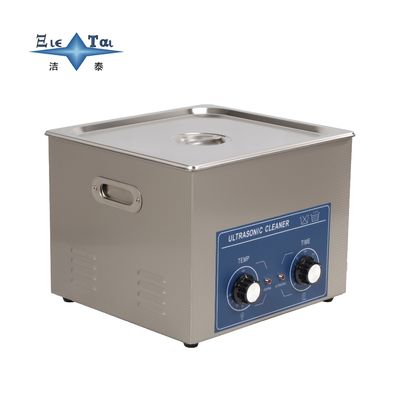

28KHz Ultrasonic Bath Cleaner 360W Ultrasonic Cleaner For Electronics And Mechanical Gears

Brand Name: JeiTai
Model Number: JPS-60
MOQ: 1
Price: ¥1400
Delivery Time: About one week to one month
Payment Terms: T/T
Detail Information
Place of Origin:
Dongguan, Guangdong
Certification:
CE, FCC, ROHS, etc.
Name:
Ultrasonic Bath Cleaner
Ultrasonic Power:
360 W
Large Box Size:
450×420×370(1Table)mm
Gross Weight:
10KG
Overall Dimensions Of The Machine:
360×330×270mm
Cleaning Tank Size:
330×300×150mm
Heating Power:
300W
Capacity:
15L
Model:
JPS-60
Product Series:
Mechanical Series
Packaging Details:
Packaging: Carton Machine dimensions: 360×330×270 mm
Supply Ability:
One unit, with a weight of 3.2 kilograms.
Highlight:

28KHz Ultrasonic Bath Cleaner

,

Ultrasonic Bath Cleaner 360W

,

360W Ultrasonic Cleaner For Electronics

Product Description

360W Mechanical Control Ultrasonic Cleaning Equipment With 28KHz High-Frequency Transducers For Deep Cleaning Of Electronic Components / Mechanical Gears.





Redefining Industrial-Grade Cleaning Standards

1. Deep Cleaning System via Cavitation Effect

Utilizes 28kHz±0.5% precise frequency control technology to generate over 3 million cavitation bubbles per second, with an impact force of up to 50MPa. This effectively peels off stubborn dirt ≥5μm on metal surfaces. The bottom arc-shaped flow guide groove design creates a 360° circulating eddy current in the cleaning solution, eliminating the cleaning blind spots of traditional flat tanks. For example, in cleaning automotive engine fuel injectors, it can remove carbon deposits in 0.2mm internal pores, improving cleanliness by 8 times compared to manual brushing, meeting the VDA 19.1 level of ISO 16232-10 standards.

2. All-Stainless-Steel Weather-Resistant Structure

Both the machine body and cleaning tank are made of 3mm thick SUS304 stainless steel (compliant with ASTM A240 standards), formed through 12 bending and welding processes. The acid and alkali corrosion resistance is 40% higher than ordinary stainless steel. The bottom is equipped with anti-vibration and anti-slip foot pads (Shore hardness 90A), combined with a 4mm rubber vibration-isolation layer, ensuring operating noise ≤55dB and vibration amplitude controlled within 0.3mm. It is suitable for continuous operation in precision laboratories and high-frequency industrial scenarios (e.g., 24-hour uninterrupted cleaning of bearing workpieces).

3. Intelligent Power Regulation Matrix

Supports continuous power adjustment from 50-1500W (step precision 10W) to match different cleaning loads:

  • Low-load mode (50-300W): For jewelry cleaning, pulsed power output (10ms interval) avoids damage to precious metal surface coatings, with a gloss recovery rate of 98%;
  • High-load mode (500-1500W): For degreasing mechanical parts, combined with 60°C constant temperature heating (temperature control precision ±2°C), the solubility of mineral oil is tripled, and the daily processing capacity of a single tank can exceed 800 pieces.
    Mechanical Series
    Model Capacity Ultrasonic power Heating power Cleaning tank size Overall dimensions of the machine Gross Weight Large box size
    L W W (LⅹwⅹH)mm (LⅹwⅹH)mm KG (LⅹwⅹH)mm
    JPS-08 1.3L 60 100 150×140×65 180×170×140 2.5  526×524×308(4Table)
    JPS-10 2L 80 100 150x140x100 180x170x180 3.0  526×524×338(4Table)
    JPS-20 3L 120 100 240x135x100 270x170x210 4.0  410×355×345(2Table)
    JPS-30 6L 180 300 300x150x150 330x180x270 6.0  555×435×390(2Table)
    JPS-40 10L 240 300 300x240x150 330x270x270 8.0  735×435×380(2Table)
    JPS-50 14L 300 300 300×240×200 330×270×320 9.0  420×360×420(1Table)
    JPS-60 15L 360 300 330×300×150 360×330×270 10.0  450×420×370(1Table)
    JPS-70 19L 420 300 330×300×200 360×330×320 11.0  460×420×420(1Table)
    JPS-80 22L 480 600 500×300×150 550×330×270 13.0  625×420×370(1Table)
    JPS-100 30L 600 600 500×300×200 550×330×320 15.0  625×420×420(1Table)

28KHz Ultrasonic Bath Cleaner 360W Ultrasonic Cleaner For Electronics And Mechanical Gears 0

28KHz Ultrasonic Bath Cleaner 360W Ultrasonic Cleaner For Electronics And Mechanical Gears 1

28KHz Ultrasonic Bath Cleaner 360W Ultrasonic Cleaner For Electronics And Mechanical Gears 2

28KHz Ultrasonic Bath Cleaner 360W Ultrasonic Cleaner For Electronics And Mechanical Gears 3
