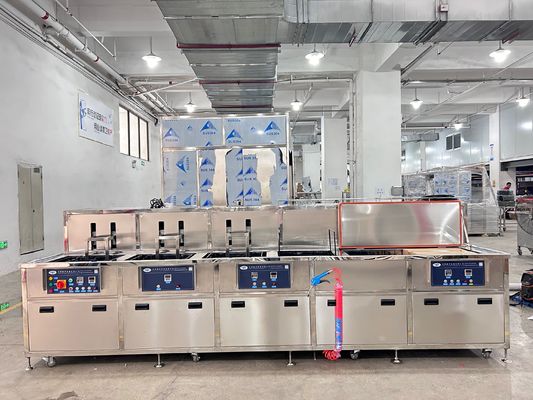

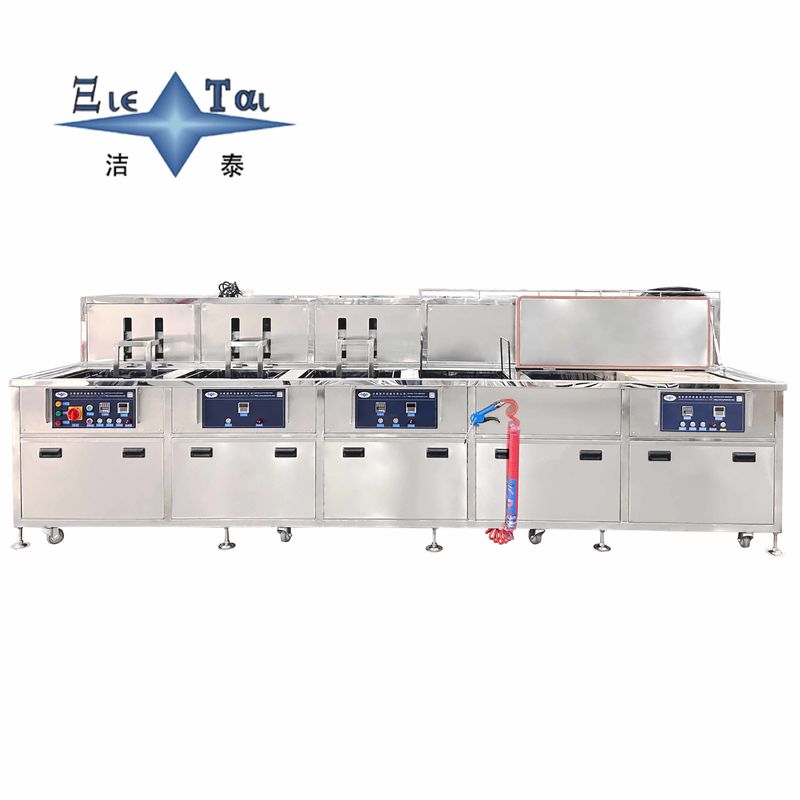

Five Tank Instrument Ultrasonic Cleaner Manual Ultrasonic Cleaner 35KW For Camera Lenses / Filter Sheets

Name: Five Tank Instrument Ultrasonic Cleaner Manual Ultrasonic Cleaner 35KW For Camera Lenses / Filter Sheets
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTM-5072FD
Price: 60000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTM-5072FD
MOQ:	1
Price:	￥60000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Instrument Ultrasonic Cleaner

Model:

JTM-5072FD

Number Of Tanks:

Power:

35KW

Overall Dimensions:

4.21M*1.4M*1.2M

Cleaning Temperature:

65℃

Weight:

804KG

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film. Dimensions: L4200mm*W1500mm*H1200mm

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

Five Tank Instrument Ultrasonic Cleaner

Instrument Ultrasonic Cleaner Manual

Manual Ultrasonic Cleaner 35KW

Product Description

Portable Manual Ultrasonic Cleaning Machine, Rapid Cleaning Equipment For Camera Lenses/Filter Sheets (Efficient Cleaning In 3 Minutes)

Oscillation + Dual-frequency Technology: Solving Cleaning Challenges of Complex Structures

Intelligent Oscillation System:
It adopts an eccentric wheel mechanical drive structure. The up-and-down oscillation amplitude of the cleaning basket is adjustable from 0 to 50mm, with a frequency of 10 - 30 times per minute. By means of dynamic liquid impact, it breaks the stagnant layer inside blind holes and deep grooves, increasing the penetration efficiency of ultrasonic energy by 60%.
Test data shows that for precision gearbox parts with an aperture ≤ 2mm, the cleanliness rate of traditional static cleaning is 75%, while it can reach 98.5% after enabling the oscillation function.

Dual-frequency Switching Technology:
28KHz Low-frequency Mode (Power: 15KW): With strong impact force, it can break up solid pollutants, making it suitable for heavy industry cleaning such as automotive bearings and mold accessories.
40KHz High-frequency Mode (Power: 10KW): High-frequency micro-vibration peels off nanoscale particles, adapting to the cleaning of precision devices like optical lenses and MEMS sensors.

Interlocked control of shaking start/stop and ultrasonic power: Low-speed shaking (5-10 times per minute) combined with high-frequency ultrasonic waves (40kHz) is used for gentle cleaning of precision parts to avoid hard-contact damage; high-speed shaking (15-20 times per minute) combined with low-frequency ultrasonic waves (28kHz) is applied to powerfully remove stubborn oil stains (such as cured drawing oil layers). The cleaning efficiency is three times higher* than that of the traditional stationary mode.

An internal mechanical limit protection device is installed, with a shaking stroke error of ≤±1mm, ensuring that micro workpieces (diameter <5mm) do not shift or collide during the cleaning process. This makes it especially suitable for high-precision components such as semiconductor wafers and optical lenses.

The gearbox of the oscillation system is equipped with German FAG bearings, boasting a lifespan of over 50,000 hours. Coupled with an intelligent lubrication system, the maintenance cycle is extended to once every six months.

Five Tank Instrument Ultrasonic Cleaner Manual Ultrasonic Cleaner 35KW For Camera Lenses / Filter Sheets 0

Five Tank Instrument Ultrasonic Cleaner Manual Ultrasonic Cleaner 35KW For Camera Lenses / Filter Sheets 1

Five Tank Instrument Ultrasonic Cleaner Manual Ultrasonic Cleaner 35KW For Camera Lenses / Filter Sheets 2

Five Tank Instrument Ultrasonic Cleaner Manual Ultrasonic Cleaner 35KW For Camera Lenses / Filter Sheets 3

Five Tank Instrument Ultrasonic Cleaner Manual Ultrasonic Cleaner 35KW For Camera Lenses / Filter Sheets 4

节能低耗:保温层采用100mm厚的硅酸铝纤维板,热损失≤5%;配备智能启停系统,闲置时自动进入节能模式,与传统烘干线相比,能耗降低 40%.
