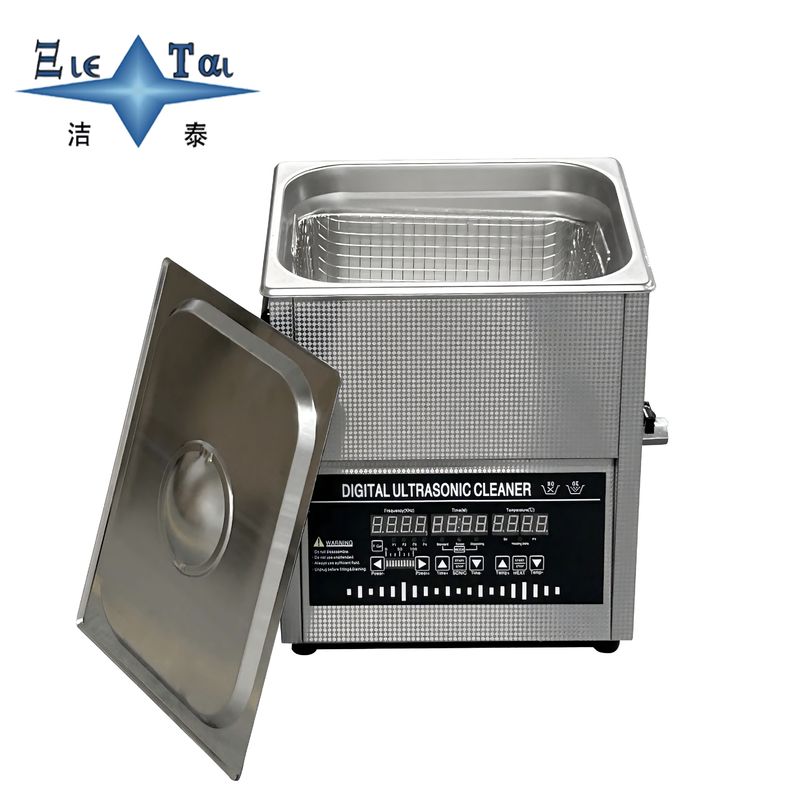

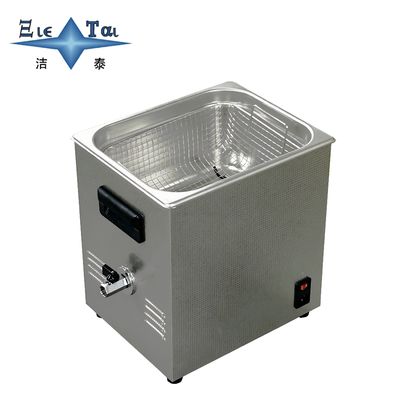

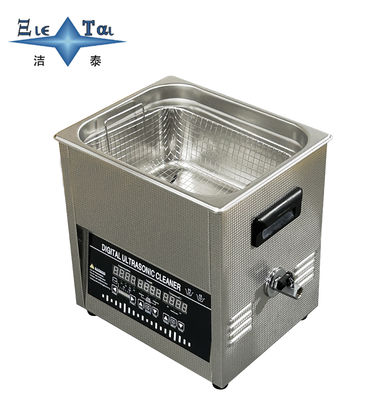

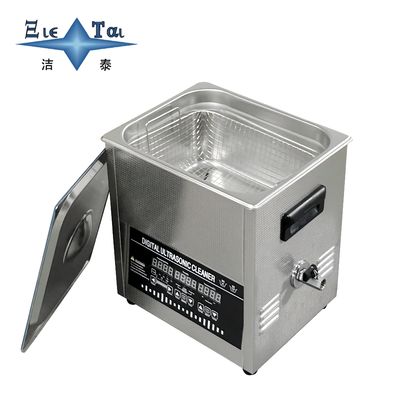

6L Industrial Multi-Frequency Ultrasonic Cleaning Machine For Electronic And Automotive Maintenance / Smart Equipment Source Factory

• 28kHz Low-Frequency Mode (Powerful Scale Removal): With a wavelength of 16mm and cavitation bubbles with a diameter of 50-100μm, it is suitable for cleaning heavy contaminants such as carbon deposits on automotive parts and release agents on hardware molds. It can remove 0.3mm thick oil deposits within 30 minutes, and the cleaning efficiency is 40% higher than that of traditional single-frequency equipment.
• 40kHz Medium-Frequency Mode (Balanced and Universal): The default operating frequency, with a cavitation density of 1.2×10⁵ bubbles/cm³, balances efficiency and precision. When cleaning the 30μm deep grooves of bearing raceways, the removal rate of lubricating grease residues reaches 99.2%.
• 60kHz High-Frequency Mode (Nanometer-level Precision Cleaning): With a wavelength of 8mm and bubbles with a diameter of less than 20μm, it is specially designed for electronic chips and optical lenses. It can strip 0.5μm - level oxide films, and the compliance rate of particle residue detection (ISO 14644-10) for semiconductor wafers is increased to 98%.
• Intelligent Frequency Sweeping Function: Supports automatic switching among three frequencies (with an adjustable interval of 1-5 minutes). For multi-layer mixed contaminants (such as flux and metal debris on PCB pads), it first breaks the particles at low frequency and then removes ionic residues at high frequency, reducing the defect rate from 1.5% to 0.2%.

• Vacuum-level Degassing Efficiency: Reduces the gas content in the cleaning solution from 5% to below 0.8% within 3 minutes, increases the energy density of the cavitation effect by 35%, and shortens the cleaning time by 30% at the same power level.
• Anti-oxidation Protection: After degassing, the oxygen content of the cleaning solution is less than 2mg/L. When cleaning pure silver jewelry and magnesium alloy components, the risk of oxidation and discoloration is reduced by 90%, and the surface gloss retention rate is over 95%.

  Smart Digital Three-Frequency Series
  Model	Capacity	Ultrasonic power	Heating power	Cleaning tank size	Overall dimensions of the machine	Gross Weight	Large box size
  	L	W	W	(LⅹwⅹH)mm	(LⅹwⅹH)mm	KG	(LⅹwⅹH)mm
  JPS-30SP	6L	70～180	300	300x150x150	325x175x285	6.3	555×435×390(2Table)
  JPS-40SP	10L	100～240	300	300x240x150	325x265x330	8.5	735×435×380(2Table)
  JPS-50SP	14L	120～300	300	300×240×200	325×265×380	10.5	420×360×420(1Table)
  JPS-60SP	15L	150～360	300	330×300×150	355×325×330	10.5	450×420×370(1Table)
  JPS-70SP	19L	170～420	300	330×300×200	355×325×380	12.0	460×420×420(1Table)
  JPS-80SP	22L	200～480	600	500×300×150	535×330×340	14.0	625×420×370(1Table)
  JPS-100SP	30L	240～600	600	500×300×200	535×330×380	16.0	625×420×420(1Table)
