Automatic Wastewater Treatment Equipment 180KW Waste Water Treatment Machine For Ultrasonic Cleaning Lines

Name: Automatic Wastewater Treatment Equipment 180KW Waste Water Treatment Machine For Ultrasonic Cleaning Lines
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JTF-ECD3-45A
Price: 3500000 USD
Availability: InStock

Brand Name:	Jietai
Model Number:	JTF-ECD3-45A
MOQ:	1
Price:	￥3500000
Delivery Time:	30-60work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Wastewater Treatment Equipment

Cleaning Temperature:

Normal Temperature

Power:

180KW

Weight:

10 Tons

Price:

CNY 3,520,000

Model:

JTF-ECD3-45A

Cleaning Frequency:

There Is Nothing.

Packaging Details:

Packaging: Wooden case, wooden frame, stretch film.

Supply Ability:

One unit. It will take 30 to 60 days.

Highlight:

Automatic Wastewater Treatment Equipment

Wastewater Treatment Equipment 180KW

Automatic Waste Water Treatment Machine

Product Description

Wastewater Treatment Equipment For Ultrasonic Cleaning Lines | Full-Process Automatic Control (Compliant With GB/T 31962-2015 Emission Standards)

Pretreatment Unit (Rapid Demulsification and Oil Removal)

Vortex Flotation System: With a processing capacity of 20m³/h and a dissolved air pressure of 0.4MPa, it generates 10-30μm microbubbles that attach to emulsified oil particles (particle size ≥5μm) for flotation. The oil removal efficiency exceeds 98% within 15 minutes, reducing oil content to ≤15mg/L after demulsification (surpassing the Class I standard of GB 8978).
Magnetic Powder Coagulation Technology: By adding nano-magnetic powder (specific surface area ≥50m²/g), it accelerates colloid aggregation through magnetic bridging, increasing floc sedimentation speed by 4 times. The SS removal rate exceeds 92%, alleviating the load on subsequent treatment.

Advanced Heavy Metal Treatment Unit

Intelligent pH Adjustment + Chelation Precipitation: Continuously monitors pH (controlled within 8.5-9.2) and automatically doses DTCR heavy metal chelating agent, achieving a removal rate of ≥99.6% for Cu²⁺/Ni²⁺/Cr³⁺. The effluent heavy metal concentration is ≤0.05mg/L (far exceeding the GB 21900-2008 emission standard).
Ceramic Membrane Precision Filtration: An inorganic membrane module with a 0.1μm pore size (temperature-resistant up to 120°C and pH-resistant from 2-13) intercepts colloids and fine particles, producing effluent turbidity ≤0.3NTU, superior to tap water standards.
Advanced Treatment of Condensate Water
- Ozone Catalytic Oxidation: By adding TiO2 catalyst and with an ozone dosage of 100mg/L, the COD removal rate is ≥70%, and the effluent COD is ≤300mg/L.
- Activated Carbon Adsorption: Two-stage activated carbon towers in series (with an iodine value of ≥1000mg/g) further remove volatile organic compounds, ensuring that the condensate water meets the standards for discharge into municipal pipe networks (COD≤500mg/L).
- Polishing Treatment Unit
  - EDI Electrodeionization Device: Using continuous electro-deionization technology, the produced water resistivity is ≥15MΩ・cm (compliant with ASTM D1193-19 standard), meeting the water requirements for precision electronics cleaning.
  - Terminal Filtration: A 0.05μm polytetrafluoroethylene filter element removes ultra-fine particles. According to the particle size detection (ISO 11171), the particle count is ≤5 particles/100mL.

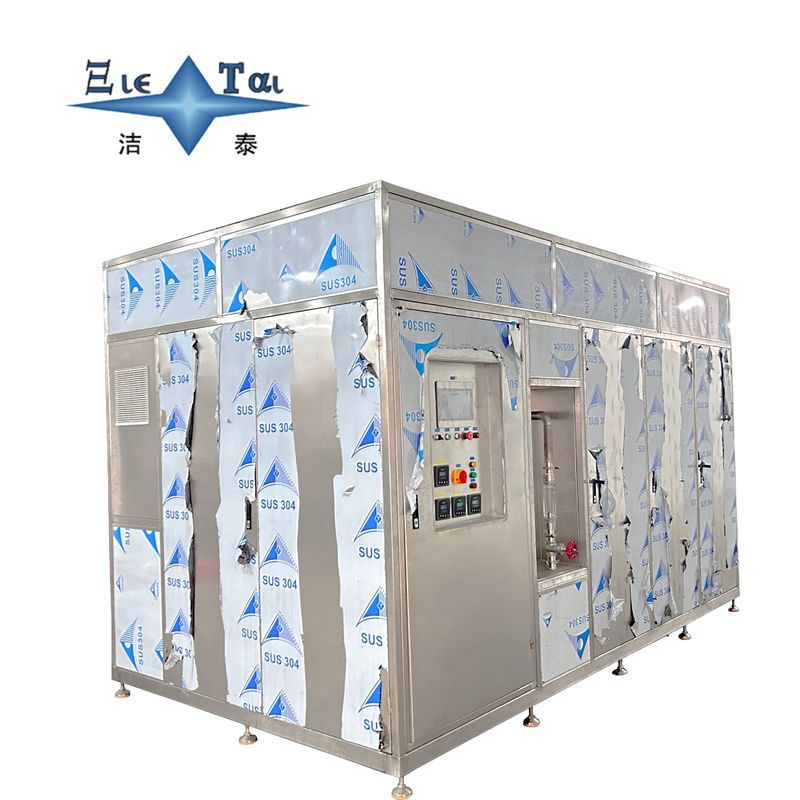

Automatic Wastewater Treatment Equipment 180KW Waste Water Treatment Machine For Ultrasonic Cleaning Lines 1

Automatic Wastewater Treatment Equipment 180KW Waste Water Treatment Machine For Ultrasonic Cleaning Lines 2

Automatic Wastewater Treatment Equipment 180KW Waste Water Treatment Machine For Ultrasonic Cleaning Lines 3

Automatic Wastewater Treatment Equipment 180KW Waste Water Treatment Machine For Ultrasonic Cleaning Lines 4

Automatic Wastewater Treatment Equipment 180KW Waste Water Treatment Machine For Ultrasonic Cleaning Lines 5
