3L Mobile Phone Ultrasonic Cleaner 50W - 120W Ultrasonic Phone Cleaner

Name: 3L Mobile Phone Ultrasonic Cleaner 50W - 120W Ultrasonic Phone Cleaner
Brand: guangdong Jietai Ultrasonic cleaning Equipment Co., Ltd.
SKU: JPS-23A
Price: 1500 USD
Availability: InStock

Brand Name:	JeiTai
Model Number:	JPS-23A
MOQ:	1
Price:	￥1500
Delivery Time:	About one week to one month
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan, Guangdong

Certification:

CE, FCC, ROHS, etc.

Name:

Mobile Phone Ultrasonic Cleaner

Large Box Size:

353×248×348（1Table)mm

Capacity:

Cleaning Tank Size:

240x135x100mm

Heating Power:

100W

Product Series:

Digital Multi-Functional Series

Overall Dimensions Of The Machine:

265x162x265mm

Gross Weight:

4KG

Model:

JPS-23A

Ultrasonic Power:

50～120W

Packaging Details:

Packaging: Carton Machine dimensions: 265×162×265mm

Supply Ability:

One unit, with a weight of 4 kilograms.

Highlight:

3L Mobile Phone Ultrasonic Cleaner

Mobile Phone Ultrasonic Cleaner 50W

120W Ultrasonic Phone Cleaner

Product Description

3L [Jietai Ultrasonic Cleaning Machine] For Mobile Phones And Electronic Devices / Frequency Sweeping And Intelligent Degassing, Industrial And Commercial Use

Exploring the Working Principle

The remarkable cleaning capability of the ultrasonic digital multifunctional cleaning machine stems from its unique working principle. It utilizes the cavitation effect, rectilinear flow effect, and acceleration effect generated by ultrasonic waves propagating in a liquid to directly and indirectly act on the liquid and contaminants, dispersing, emulsifying, and stripping the contaminant layer to achieve superior cleaning results.

Cavitation Effect

This is the core mechanism of ultrasonic cleaning. When ultrasonic waves penetrate a liquid through high-frequency alternating compression and decompression forces (exceeding 20,000 times per second), vacuum bubble clusters—known as cavitation bubbles—form in the liquid under decompression. These cavitation bubbles grow rapidly after formation and collapse under compression, releasing a powerful impact force in an instant. This force generates thousands of atmospheres of pressure and hundreds of degrees of heat around it, akin to tiny bombs exploding near contaminants, forcefully stripping dirt adhering to object surfaces. For example, oil stains and dust on eyeglass lenses are easily shaken off by the cavitation effect, restoring the lenses to clarity. It is important to note that the bubbles visible to the naked eye during ultrasonic cleaning are air bubbles, not vacuum cavitation bubbles. These air bubbles can inhibit cavitation and reduce cleaning efficiency. Therefore, when using the cleaning machine, it is essential to minimize the generation of air bubbles to optimize cavitation performance.

Rectilinear Flow Effect

Ultrasonic waves generate a directional flow in the liquid along the sound propagation path, known as rectilinear flow. When rectilinear flow occurs, micro oil contaminants on the surface of the cleaned object are agitated, and the cleaning solution on the contaminant surface undergoes convection. This convection accelerates the mixing of the dissolved contaminant solution with fresh liquid, speeding up the dissolution process and greatly enhancing contaminant removal. For instance, when cleaning jewelry, the rectilinear flow effect quickly flushes out dirt from the gaps in the jewelry, effectively improving cleaning efficiency. When the sound wave intensity reaches 0.5W/cm², the rectilinear flow becomes visible to the naked eye, flowing perpendicularly to the vibration surface at a velocity of approximately 10 cm/s, allowing us to visually observe the working process of the ultrasonic cleaning machine.

Acceleration Effect

Under the action of ultrasonic waves, liquid particles are propelled to generate acceleration. For ultrasonic cleaning machines with higher frequencies, the cavitation effect may be less pronounced, and cleaning primarily relies on the acceleration of liquid particles under ultrasonic action to impact contaminants with ultra-precision. This acceleration enables liquid particles to collide with contaminants on object surfaces at high speeds, breaking them apart and causing them to detach, achieving deep cleaning. The acceleration effect is particularly effective when cleaning precision components such as electronic components, removing tiny contaminants from their surfaces without causing damage.

Digital Multi-Functional Series
Model	Capacity	Ultrasonic power	Heating power	Cleaning tank size	Overall dimensions of the machine	Gross Weight	Large box size
Model	L	W	W	(LⅹwⅹH)mm	(LⅹwⅹH)mm	KG	(LⅹwⅹH)mm
JPS-23A	3L	50～120	100	240x135x100	265x162x265	4.0	353×248×348 (1Table)
JPS-36A	6L	70～180	300	300x150x150	325x175x285	6.0	408×273×370 (1Table)
JPS-410A	10L	100～240	300	300x240x150	325x265x330	8.0	413×363×428 (1Table)
JPS-514A	14L	120～300	300	300×240×200	325×265×380	8.5	423×350×480 (1Table)
JPS-615A	15L	150～360	300	330×300×150	355×325×330	11.0	448×413×428 (1Table)
JPS-719A	19L	170～420	300	330×300×200	355×325×380	12.0	440×425×480 (1Table)
JPS-822A	22L	200～480	600	500×300×150	535×330×340	16.0	628×418×423 (1Table)
JPS-1030A	30L	240～600	600	500×300×200	535×330×380	19.0	628×418×468 (1Table)

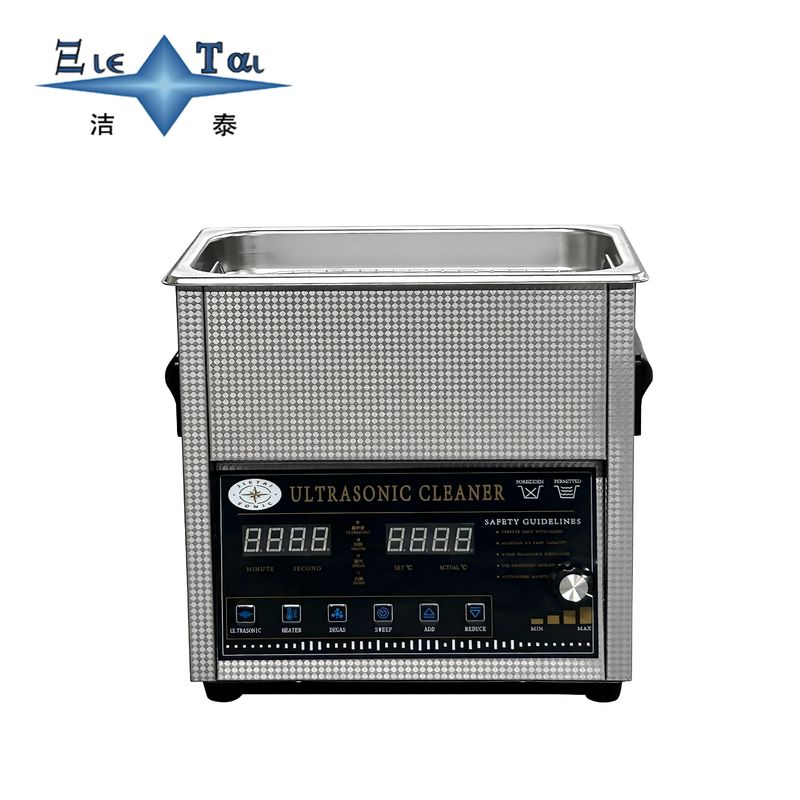

3L Mobile Phone Ultrasonic Cleaner 50W - 120W Ultrasonic Phone Cleaner 0

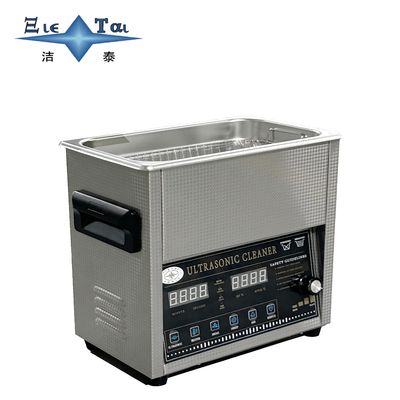

3L Mobile Phone Ultrasonic Cleaner 50W - 120W Ultrasonic Phone Cleaner 1

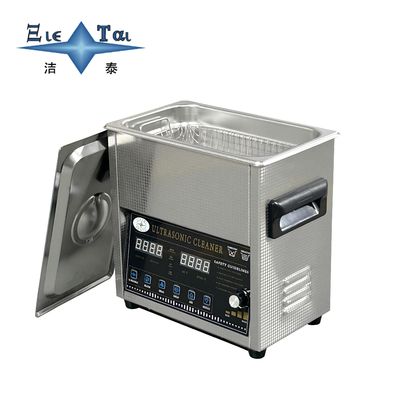

3L Mobile Phone Ultrasonic Cleaner 50W - 120W Ultrasonic Phone Cleaner 2
